LOT5T160W/D10/PCT
DISCONTINUED

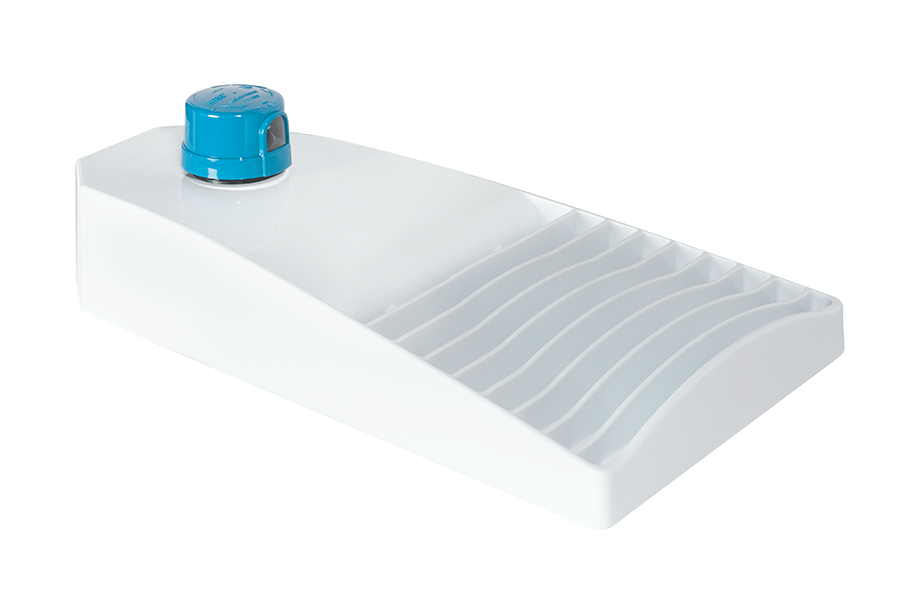

LOT5T160W/D10/PCT
- Lightweight design and low EPA minimize pole load
- Best-in-class 5-G vibration rating
- 100,000-hour LED lifespan
Performance
| Watts | 160W |
| Color Temp | 5000K (Cool) |
| Lumens | 22,315 lm |
| Efficacy | 141 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.35A |
| 208V | 0.78A |
| 240V | 0.67A |
| 277V | 0.59A |
| Input Watts | 158.3W |
Dimensions
Weight: 20.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P77QSRJR
DLC Product Code: P77QSRJR
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.35A, 208V: 0.78A, 240V: 0.67A, 277V: 0.59A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.67% at 120V, 13.6% at 277V
Power Factor
99.5% at 120V, 93.3% at 277V
Photocell
120-277V Twistlock photocell included. Photocell is compatible with 120-277V.
Surge Protection
L-N 4 kV; L-L, L-GND 6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
Type VS distributes light in a square symmetrical pattern and is meant for large, commercial parking lot lighting as well as areas where sufficient, evenly distributed light is necessary
