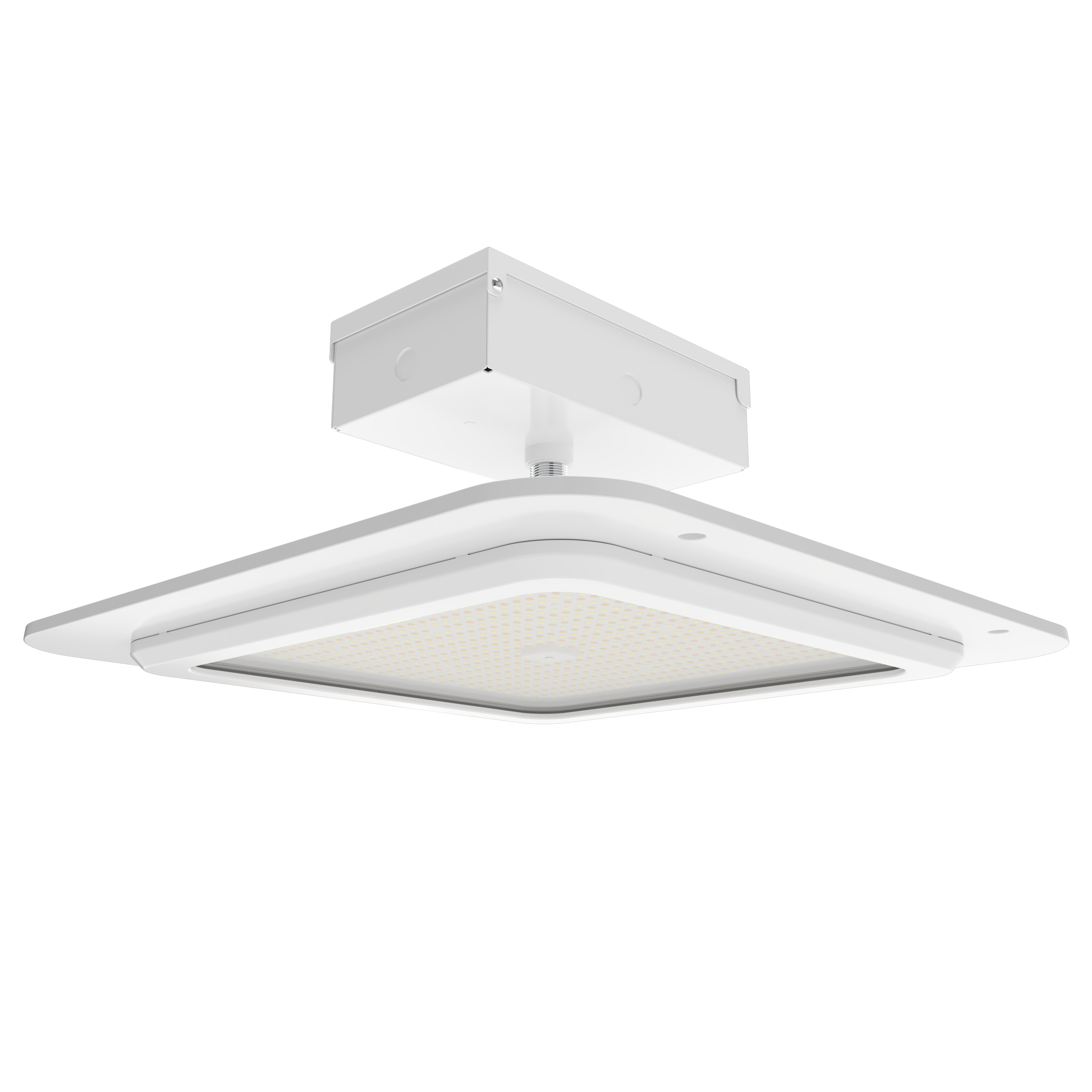

MASI20/480
200W 3000/4000/5000K
- 100,000-Hour LED lifespan
- IP65 rating protects against dust and water
- UL wet location rated
- DLC Listed
- 5-Year, No-Compromise Warranty
Performance
| Watts | 200/180/150W |
| Color Temp | 3000/4000/5000K |
| Lumens | 23341-32522 lm |
| Efficacy | 149.2-171.1 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 145.2-201.6W |

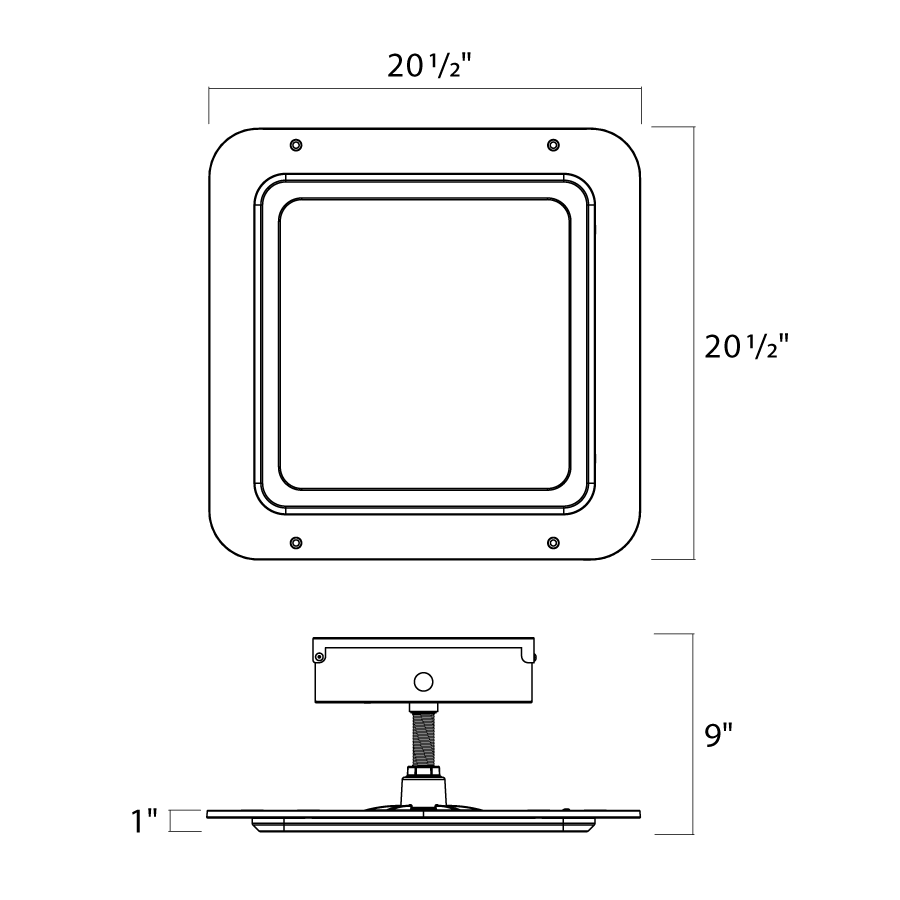

Dimensions
Weight: 19.8 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
200W/180W/150W (factory default 200W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
200W/180W/150W (factory default 200W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Die-cast aluminum
Lens
Tempered glass
Gaskets
High-temperature silicone
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Vibration Rating
3G vibration rating per ANSI C136.31
Green Technology
Mercury and UV free. RoHS-compliant components.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting

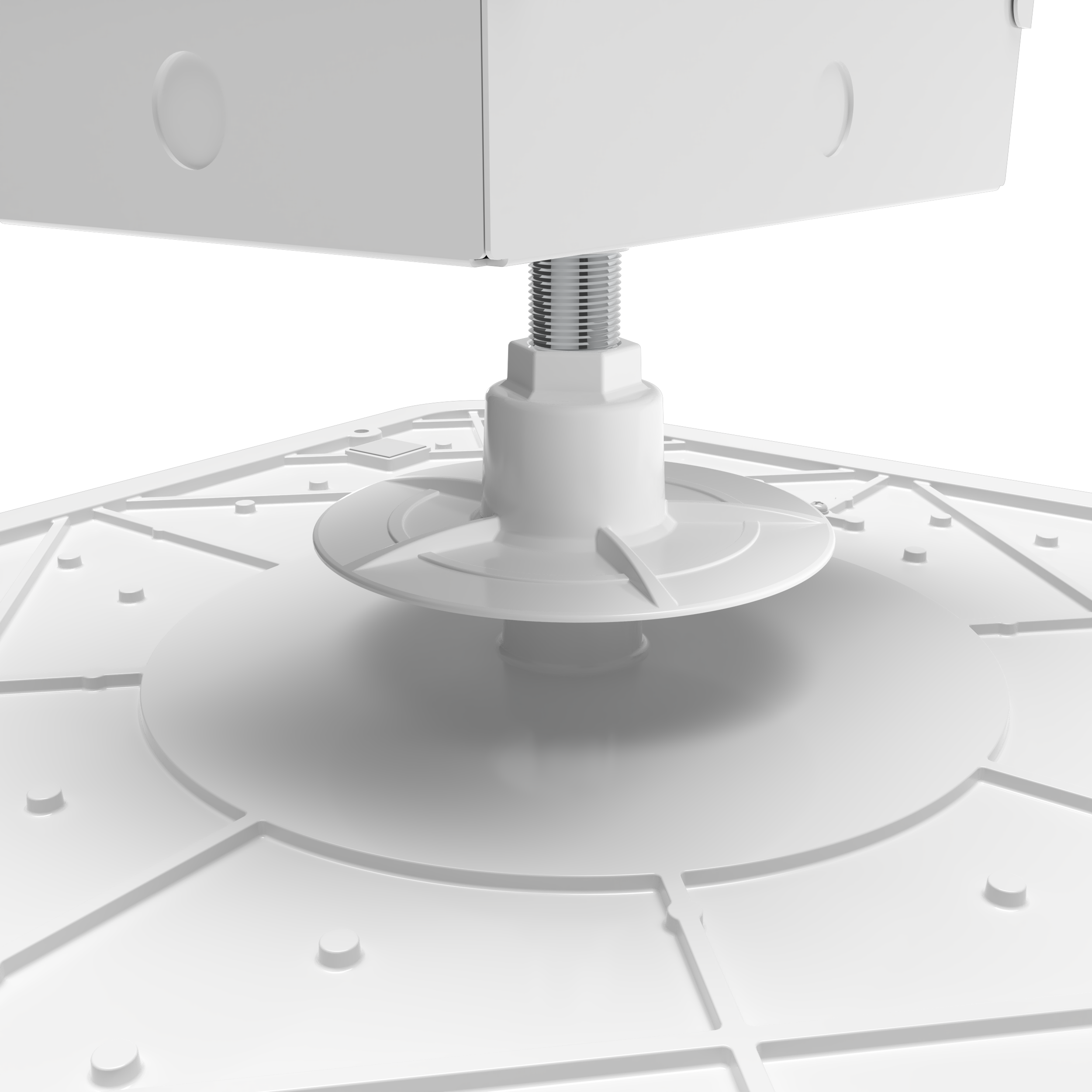

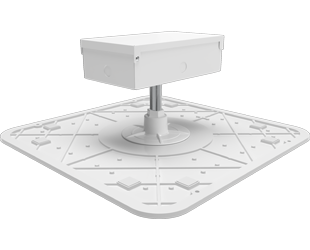

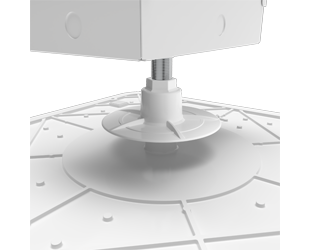

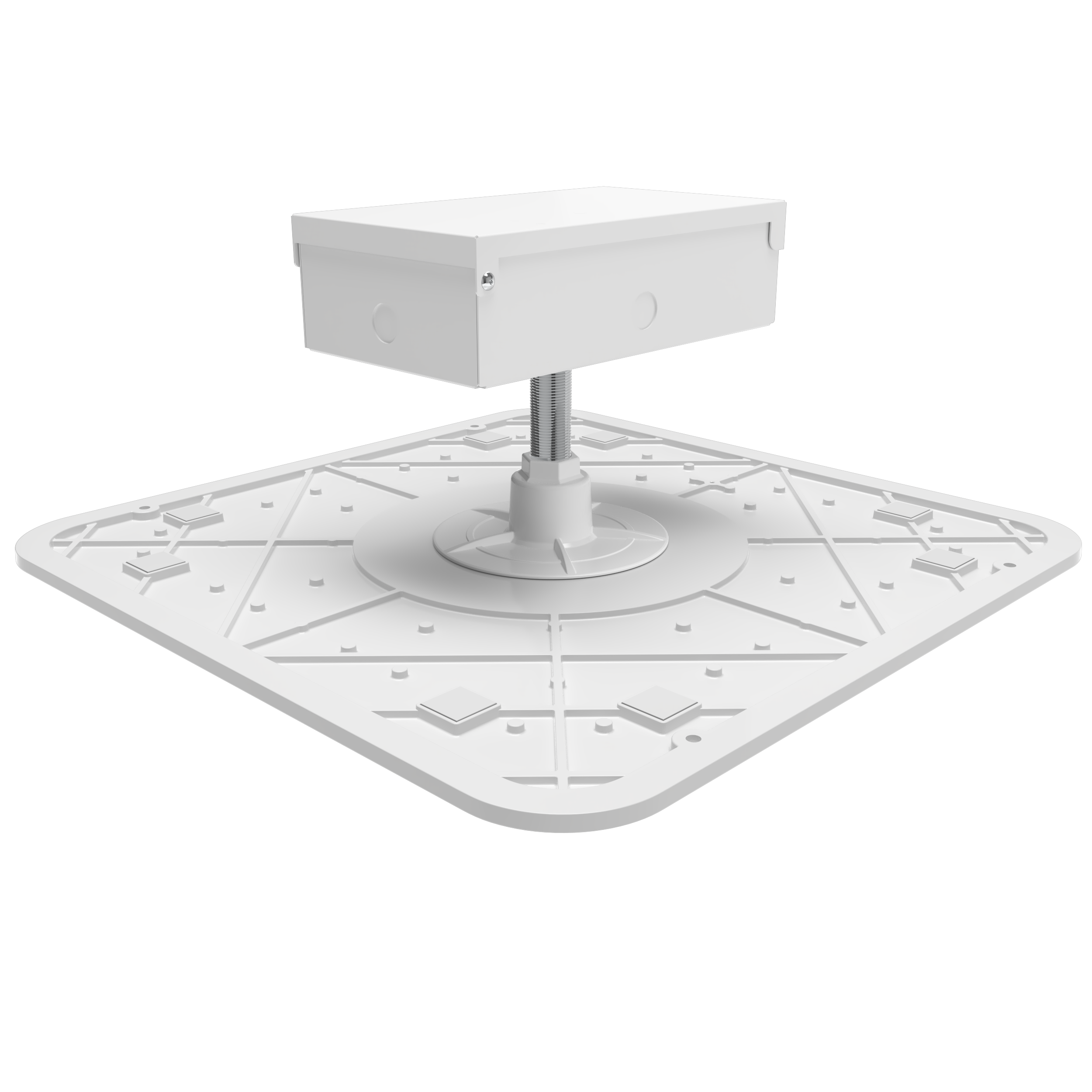

Semi-recessed construction. Junction box with four (4) 1/2" NPS conduit openings.
Optical
Bug Rating
B3-U0-G3
Electrical
Driver
Constant Current, Class 1, 480V 50/60 Hz:
200W: 480V: 0.42A
180W: 480V: 0.38A
150W: 480V: 0.33A
200W: 480V: 0.42A
180W: 480V: 0.38A
150W: 480V: 0.33A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
No
Dim to Off
Yes
Surge Protection
L-N: 6kV; L/N-PE: 6kV
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
