MDLED3X12-40YY-B-W
MDLED3X12-40YY-B-W
- Three 12 Watt LED heads
- Fixture heads rotate a full 360° and tilt up to 45°
- Easily lock heads in place with a thumb screw
- Tool-less adjustment for 3 discrete positions: full recess, flush mount or semi-recessed
Performance
| Watts | 36W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 2,472 lm |
| Efficacy | 53.2 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.39A |
| 208V | 0.27A |
| 240V | 0.24A |
| 277V | 0.21A |
| Input Watts | 46.5W |
Dimensions
Weight: 6.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IC Rated
Suitable for direct contact with insulation
Construction
Gear Tray Component
This component must be ordered with Remodeler or New Construction housing in order to make a complete fixture. See here for Remodeler housing.
See here for New Construction housing.
See here for New Construction housing.
Brackets
Butterfly brackets allow mounting with 1/4 x 1/2" bar stock, C Channel, 1/2" conduit, or nailer bars
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
TRIAC, Constant Current, Class 2, 120V, 50/60Hz, 350mA, 0.15A, Power Factor 98.9%, THD ≤ 20%
Dimming Driver
TRIAC compatible dimmer as low as 10%. See compatibility guide here.
Recently Viewed Products
NDLED6SD-80N-S-W
Recessed Downlights 20 Lumens Ndled6Sd 6 Inch Square Universal Dimming 80 Degree Beam Spread 4000K 80Cri Specular Cone White Trim
GN1LED13NRAC11YL
Decorative 599 Lumens Gooseneck 13W 4000K 24 Inches Arm Angled Cone Rectangular 11 Inches Yellow
GN5LED26NSAD11YL
Decorative 1461 Lumens Gooseneck 26W 4000K Pole 20 Inches High & 19 Inches From Pole Angled Dome Spot Reflector 11 Inches Yellow
ALED4T50YW/D10/PCT
Arealights 7127 Lumens Aled Type Iv 8In Pole Arm 3K 50W 120V-277V 0-10V Dimming Twistlock Photocell White
NDLED6SD-80N-S-W
Recessed Downlights 20 Lumens Ndled6Sd 6 Inch Square Universal Dimming 80 Degree Beam Spread 4000K 80Cri Specular Cone White Trim

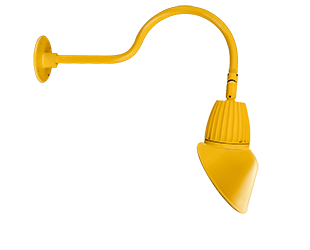

GN1LED13NRAC11YL
