MDLED3X12F-20YY-W
MDLED3X12F-20YY-W
- Three 12 Watt LED heads
- Fixture heads rotate a full 360° and tilt up to 45°
- Easily lock heads in place with a thumb screw
- Tool-less adjustment for 3 discrete positions: full recess, flush mount or semi-recessed
Performance
| Watts | 36W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 2,472 lm |
| Efficacy | 53.2 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.36A |
| 208V | 0.24A |
| 240V | 0.21A |
| 277V | 0.18A |
| Input Watts | 46.5W |
Dimensions
Weight: 7.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IC Rated
Suitable for direct contact with insulation
Construction
Gear Tray Component
This component must be ordered with Remodeler or New Construction housing in order to make a complete fixture. See here for Remodeler housing.
See here for New Construction housing.
See here for New Construction housing.
Brackets
Butterfly brackets allow mounting with 1/4 x 1/2" bar stock, C Channel, 1/2" conduit, or nailer bars
Thermal Protection
Thermal protector included with On/OFF driver. Disables power if temperature exceeds safe operation levels.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
On/Off Non-Dimming, Constant Current, Class 2, 100-277V, 50/60Hz,4KV Surge Protection, 350mA, 100-240VAC 0.3-0.15A, 277VAC 0.15A, Power Factor 99%, THD ≤ 20%.
Recently Viewed Products
GN3LED13NRAD11BWN
Decorative 370 Lumens Gooseneck 13W 4000K Up Curve 30 Inches High & 25 Inches From The Wall Angled Dome Rectangular 11 Inches Brown
IVAT4-100LSF750ZU/7PR/LC
Arealights 11361 Lumens Ivelot T4 100W 10000L Slipfitter 5000K Warm 70Cri Bronze 120V-277V Dimmable 7-Pin Receptacle Lightcloud
NDLED4RD-50YN-B-B
Recessed Downlights 12 Lumens Ndled4Rd 4 Inch Round Universal Dimming 50 Degree Beam Spread 3500K 80Cri Black Cone Black Trim
LOT2T65N/D10/UPA
Area Lights 8359 Lumens Lotblaster 65W 4000K Type Ii 0-10V Dimming 120V-277V Universal Pole Adapter Bronze

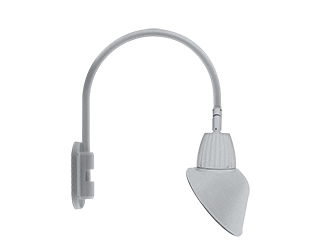

GN4LED26YSAC11S
