MDLED3X12F-30Y-W
MDLED3X12F-30Y-W
- Three 12 Watt LED heads
- Fixture heads rotate a full 360° and tilt up to 45°
- Easily lock heads in place with a thumb screw
- Tool-less adjustment for 3 discrete positions: full recess, flush mount or semi-recessed
Performance
| Watts | 36W |
| Color Temp | 3000K (Warm) |
| Lumens | 2,772 lm |
| Efficacy | 60 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.36A |
| 208V | 0.24A |
| 240V | 0.21A |
| 277V | 0.18A |
| Input Watts | 46.2W |
Dimensions
Weight: 7.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IC Rated
Suitable for direct contact with insulation
Construction
Gear Tray Component
This component must be ordered with Remodeler or New Construction housing in order to make a complete fixture. See here for Remodeler housing.
See here for New Construction housing.
See here for New Construction housing.
Brackets
Butterfly brackets allow mounting with 1/4 x 1/2" bar stock, C Channel, 1/2" conduit, or nailer bars
Thermal Protection
Thermal protector included with On/OFF driver. Disables power if temperature exceeds safe operation levels.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
On/Off Non-Dimming, Constant Current, Class 2, 100-277V, 50/60Hz,4KV Surge Protection, 350mA, 100-240VAC 0.3-0.15A, 277VAC 0.15A, Power Factor 99%, THD ≤ 20%.
Recently Viewed Products

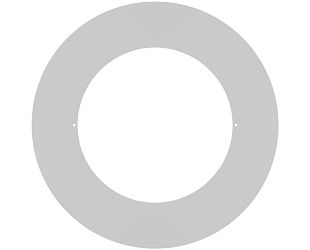

DL12-14GOOF/R/M
