MDLED4X12F-40N-B-W
MDLED4X12F-40N-B-W large main
  • Four 12 Watt LED heads
  • Fixture heads rotate a full 360° and tilt up to 45°
  • Easily lock heads in place with a thumb screw
  • Tool-less adjustment for 3 discrete positions: full recess, flush mount or semi-recessed
 View Technical Specs
View Price & Availability
Performance
Watts 48W
Color Temp 4000K (Neutral)
Lumens 4,728 lm
Efficacy 73.1 lm/W
Color Accuracy 90 CRI
L70 Lifespan
Type Constant Current
120V 0.48A
208V 0.32A
240V 0.28A
277V 0.24A
Input Watts 64.7W
Dimensions
Link to Dimension Drawing

Weight: 8.2 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IC Rated
Suitable for direct contact with insulation
Construction
Gear Tray Component
This component must be ordered with Remodeler or New Construction housing in order to make a complete fixture. See here for Remodeler housing.
See here for New Construction housing.
Brackets
Butterfly brackets allow mounting with 1/4 x 1/2" bar stock, C Channel, 1/2" conduit, or nailer bars
Thermal Protection
Thermal protector included with On/OFF driver. Disables power if temperature exceeds safe operation levels.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
On/Off Non-Dimming, Constant Current, Class 2, 100-277V, 50/60Hz,4KV Surge Protection, 350mA, 100-240VAC 0.3-0.15A, 277VAC 0.15A, Power Factor 99%, THD ≤ 20%.

Recently Viewed Products

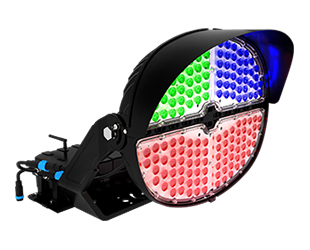

This is a link to the product P1RGB P1RGB
