NDICLED3R-25DYY
NDICLED3R-25DYY

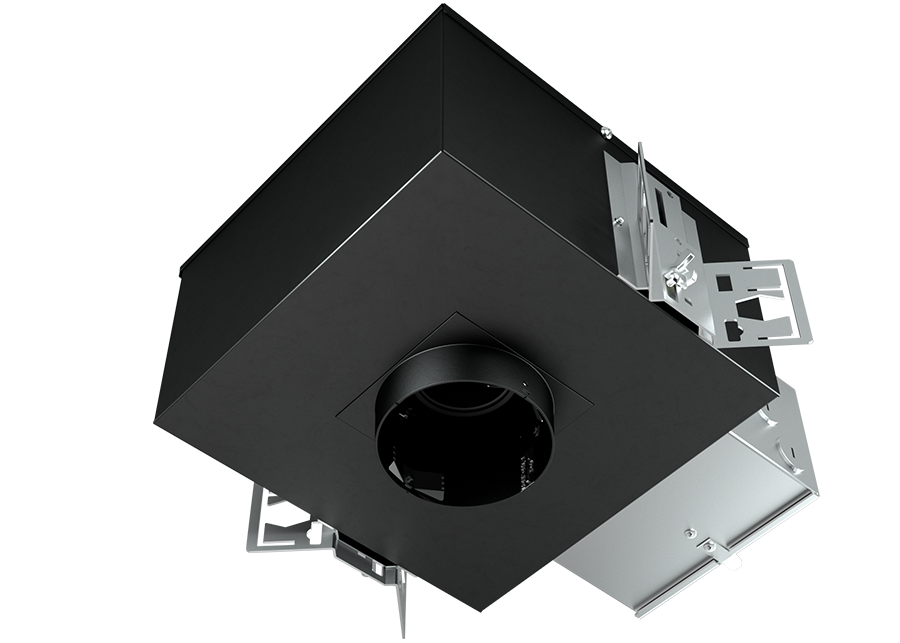

- 3-in-1 housing accommodates downlight, adjustable or wall washer
- Universal driver supports TRIAC, ELV and 0-10 dimming
- IC-rated, Certified Air Tight
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 25W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | See Table Below* lm |
| Efficacy | |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.24A |
| 208V | 0.15A |
| 240V | 0.13A |
| 277V | 0.11A |
| Input Watts | 26W |

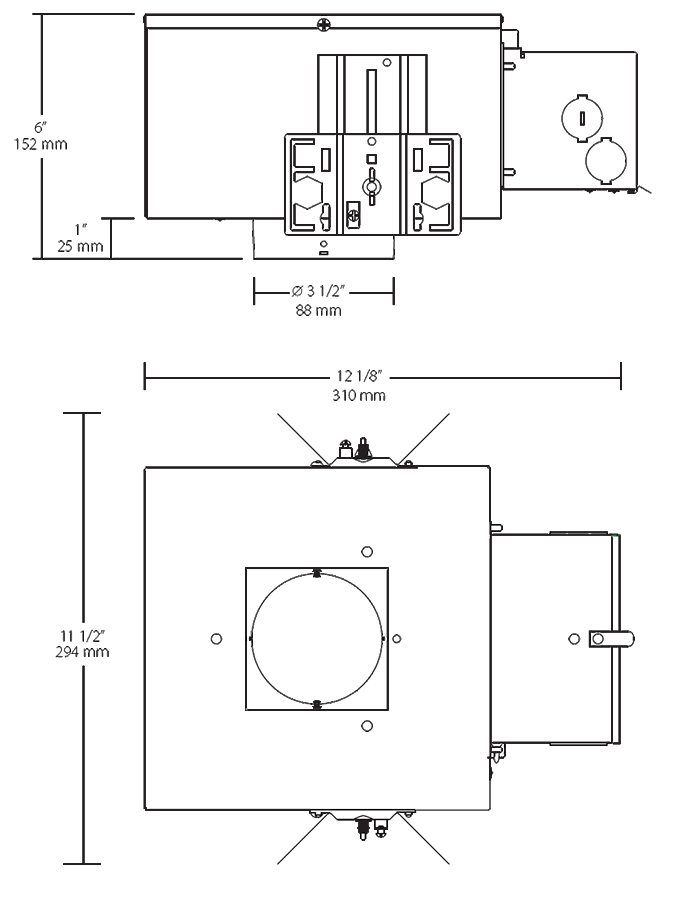

Dimensions
Weight: 9.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations in a covered ceiling
IC Rated
Suitable for direct contact with insulation
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.24A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
Dimming Driver
Universal dimming driver supports TRIAC, ELV and 0-10V. See dimmer compatibility guide here.
LED Characteristics
Color Consistency
2-step u'-v' Circle Tolerance, previously referred to as 2-step MacAdam Ellipse, achieves consistent fixture-to-fixture color (ANSI standard C78.377.2015)
Construction
Aperture Size
3" Rough-In
Recently Viewed Products

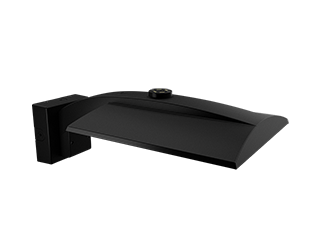

IVAT2-75LWM750KU/7PR/LC
