NDLED4SD-WYNHC-M-B
NDLED4SD-WYNHC-M-B
- Butterfly bracket allows mounting with bar stock, "C" channel, 1/2" conduit or nailer bars
- Low-profile design allows for installation in ceilings with limited space
- Absolute White 3-step consistency and black body accurate
- Nanostructure lens eliminates "hot spots" providing smooth and efficient light
Performance
| Watts | |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | |
| Efficacy | |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Sold Separately |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | See Rough-in* |
Dimensions
Weight: 1.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
Construction
Trim Component
This component must be ordered with New Construction Square Rough-In in order to make a complete fixture. See here for New Construction Square Rough-In.
Housing
Professional-grade, die-cast aluminum construction
Trim Ring
Black powder coated die cast trim ring
Trim Cone
Matte silver square trim cone
Drop Ceiling Installation
NDLED can be installed in drop ceiling tiles when using optional c-channel bars and following local construction codes
Aperture Size
4" Trim Module
Junction Box
Integral junction box with wiring capacity for
Min 90°C supply conductors
4 in 4 out
Min 90°C supply conductors
4 in 4 out
Easy Installation
The EZ-Connector makes installation easy
Electrical
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only). See dimmer compatibility guide here.
Dimming
Dimmable. Requires rough-in with dimming driver.
Optical
Optics
Wall wash optics engineered for wide lateral distribution and smooth so ft light from ceiling to floor
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
IVAT4-45LSF730WH/WS4
Area Lights 4599 Lumens Ivat4 Type Iv 38W Slipfitter Mount 70Cri 3000K White 347-480V 0-10V Dimming 40 Feet Lens Wattstopper Sensor
HALVS18L935-MP-W
Architectural 313 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3500K Metallic Platinum Lens White Finish
BOA8S-40D10-40Y-W/LC
Architectural 2998 Lumens Boa 8 Ft 40W Surface Mount 3000K 0-10V Dimming Lightcloud Controller White
HALV18L940-FG1-CU/BL/E2
Architectural 1333 Lumens Halv Forward Light 25W 90Cri 4000K Frosted Lens With Grill Style 1 Copper Finish Bi-Level Control Battery Backup
T8-14-48G-840-DE-BYP
Linear Tubes 1800 Lumens T8 14W 4 Feet Glass 80Cri 4000K Double Ended Wiring Method Ballast Bypass
IVAT4-45LSF730WH/WS4
Area Lights 4599 Lumens Ivat4 Type Iv 38W Slipfitter Mount 70Cri 3000K White 347-480V 0-10V Dimming 40 Feet Lens Wattstopper Sensor
HALVS18L935-MP-W
Architectural 313 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3500K Metallic Platinum Lens White Finish

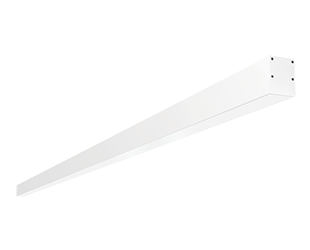

BOA8S-40D10-40Y-W/LC
