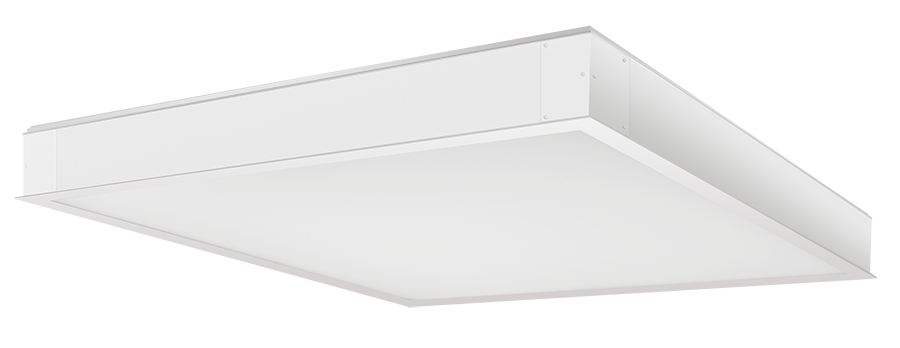

PANEL2X2-41N
PANEL2X2-41N
- High-transmission acrylic lens provides excellent distribution and uniformity
- UL Listed for damp locations
- 5-Year, No-Compromise Warranty
Performance
| Watts | 41W |
| Color Temp | 4000K (Neutral) |
| Lumens | 4,823 lm |
| Efficacy | 126.6 lm/W |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.33A |
| 208V | 0.202A |
| 240V | 0.175A |
| 277V | 0.152A |
| Input Watts | 38.1W |

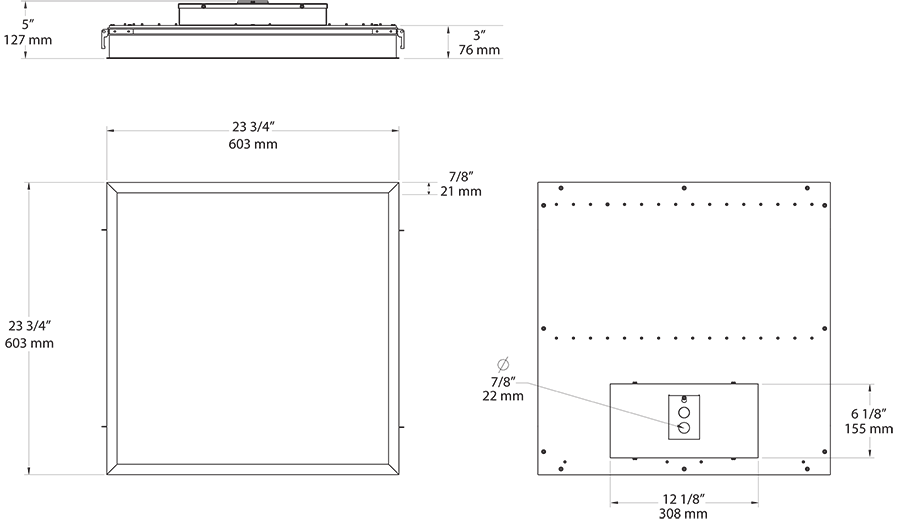

Dimensions
Weight: 20.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations. Recommended for indoor use only.
IC Rated
Suitable for insulated ceilings
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Construction
Lens
High-transmission acrylic lens with excellent distribution and uniformity
Housing
Lightweight housing is constructed of extruded aluminum
Finish
Formulated for high durability and long-lasting color
Quick and Easy Installation
Modular splice box/driver compartment available for quick installation. Integral Tee grid clips make installation easy and secure.
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
THD
6.6% at 120V, 10.0% at 277V
Power Factor
99.6% at 120V, 91.7% at 277V
