PAR16-6.5-930-35D-DIM-G2

Spec Sheet Photometrics Report FCC Caution Spec Sheet

Produces rich and vibrant colors >90CRI

Energy efficient replacement for incandescent and halogen Small diameter reflectors

Constructed from durable materials which lowers risk of breakage

Rated for use in enclosed and open fixtures in dry or damp locations

Single optic and full face lens for precise beam angle control

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Title 20 Compliant, ENERGY STAR Compliant, UL Listed

Compatible with low voltage transformers (check compatibility list)

View Technical Specs

View Price & Availability

Performance

Watts	6W
Color Temp	3000K (Warm White)
Lumens	560 lm
Efficacy	86.2 lm/W
Color Accuracy	90 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120V
Power Factor	>0.9
Flicker	≤30%
THDi	N/A
R9	50

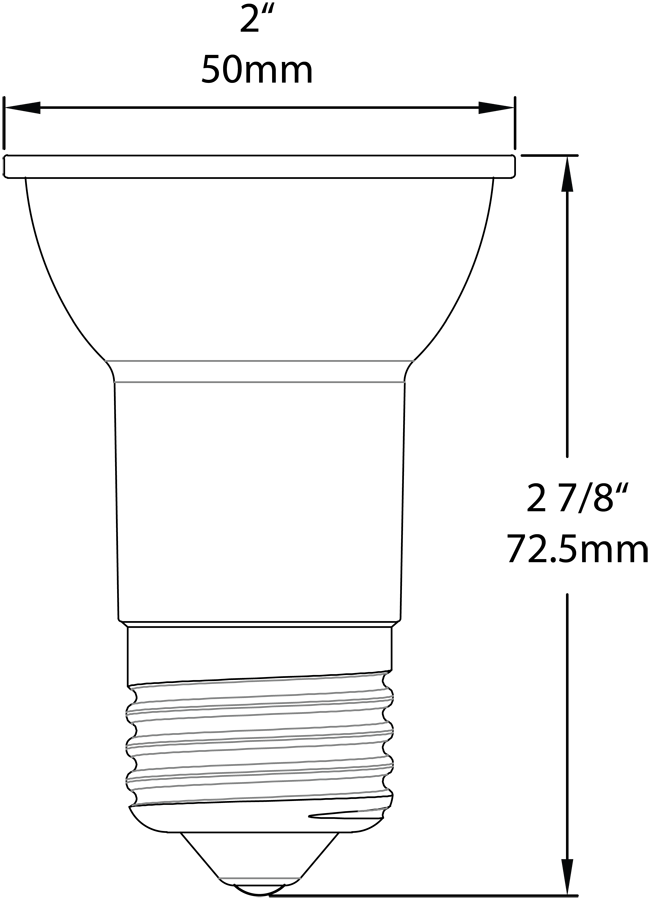

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

PAR

Input Wattage

6.5W

Wattage Equivalency

60W Halogen

Lumens

560lm

Efficacy

86lm/W

L70 Lifespan

25,000 Hours

Construction

Shape

PAR16

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

3000K Warm White

Color Accuracy (CRI)

≥90

Beam Angle

35°

Installation

Base Type

E26 Edison

Electrical

Power Factor

>0.9

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimmable

Yes

Input Voltage

120V

Flicker

≤30%

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

California Energy Commission (CEC) Status

Lawful for Sales in California
