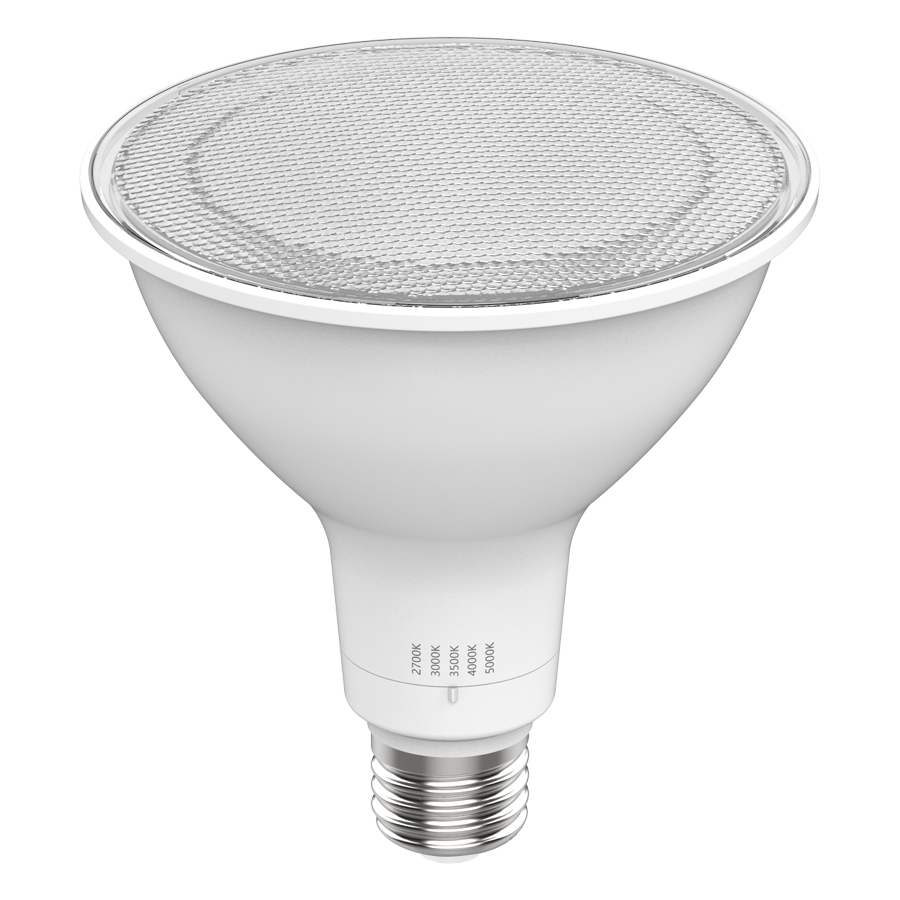

PAR38FA-19-9CCT-40D-UNV
PAR38FA-19-9CCT-40D-UNV
- Adjustable CCT to choose from 2700/3000/3500/4000/5000K
- Replacement for incandescent/halogen PAR Lamps
- Rated for use in enclosed fixtures in dry, damp, or wet locations
- 90+CRI provides high quality color rendering. Title 20 and Title 24 Compliant
- Range voltage 120-277V making them ideal for commercial applications
Performance
| Watts | 19W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 2,450 lm |
| Efficacy | 128 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 25,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 19W |
Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
PAR
Description
Replacements for HID commercial PAR lamps. Dimmable CCT-adjustable lamps that are wet rated and great for use outdoors.
Wattage Equivalency
250W
Input Wattage
19W
Lumens
2,450lm
Efficacy
128lm/W
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results (lamps only)
Electrical
Power Factor
0.7
Dimmable
No
Input Voltage
120-277V AC
Operating Frequency
60 Hz
Input Current @ 120V (mA)
175mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
40°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 no greater than 0
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
E26 Edison
Construction
Shape
PAR38
Finish
White
Endcap Material
Aluminum
Enclosure Material
Plastic+Aluminum
Lens Finish
Frosted
Lens Construction
Single optic and full face lens for precise beam angle control
Compliance
Listings
UL1993
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
Fixture Rating
Suitable for use in enclosed fixtures.
Suitable for use in open fixtures.
Suitable for use in open fixtures.
Certification Model Number
PAR38FA-19-9CCT-40D-UNV
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
