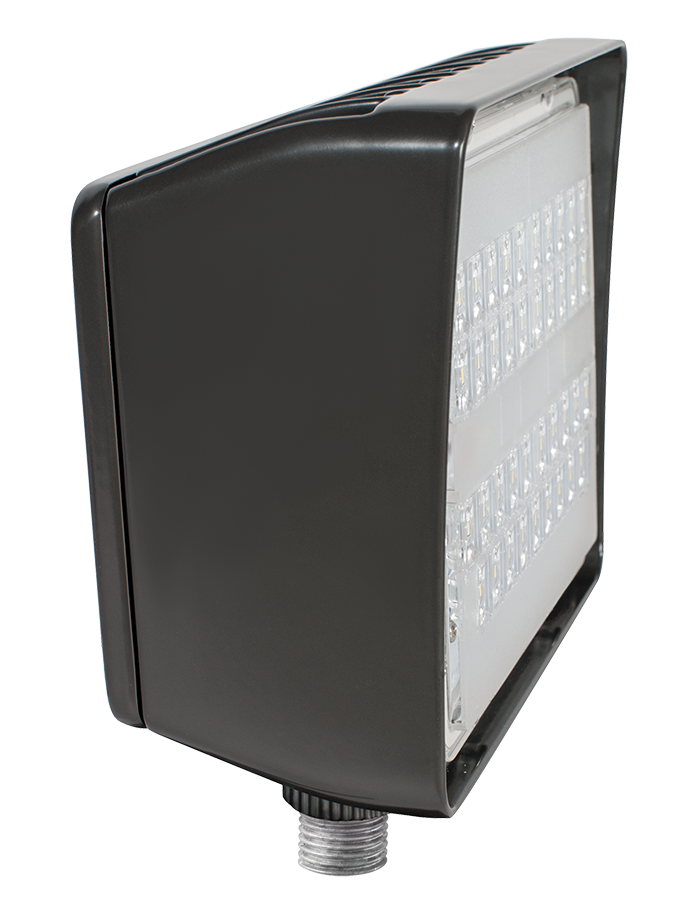

PIP15/D10
PIP15/D10
- 60,000-hour LED lifespan
- Standard 0-10V dimming driver
- 5-Year, limited warranty
Performance
| Watts | 15W |
| Color Temp | 5000K (Cool) |
| Lumens | 2,401 lm |
| Efficacy | 152 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.14A |
| 208V | 0.08A |
| 240V | 0.07A |
| 277V | 0.062A |
| Input Watts | 15.8W |

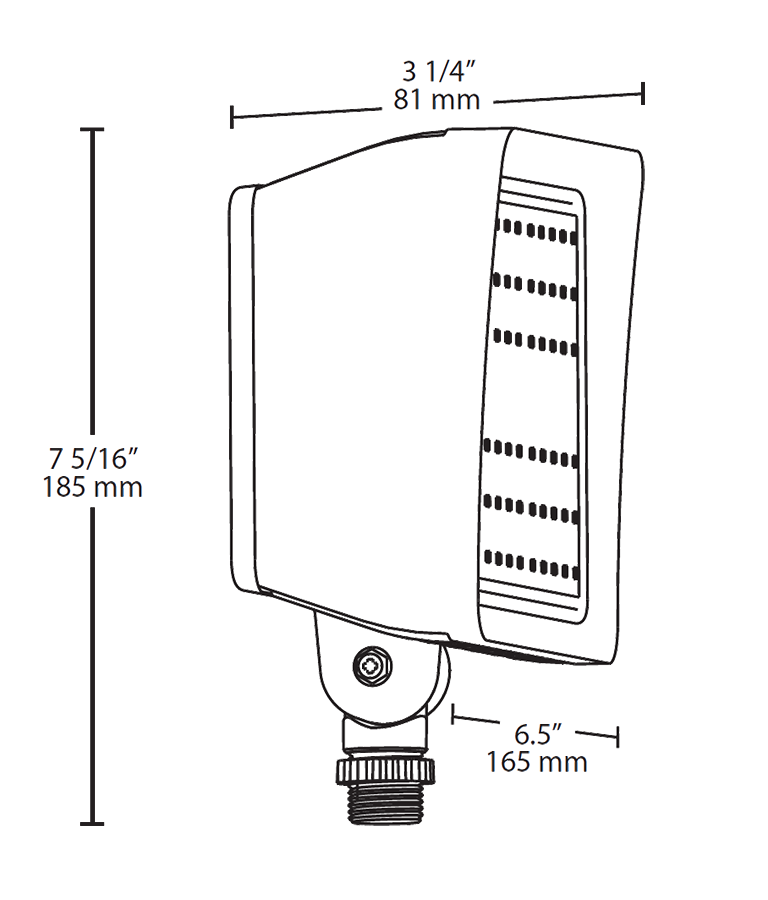

Dimensions
Weight: 3.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PEW3K5ZU
DLC Product Code: PEW3K5ZU
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 2kV, 120 - 277VAC, 120V: 0.14A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
11.65% at 120V, 9.01% at 277V
Power Factor
98.6% at 120V, 88.6% at 277V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Performance
Lifespan
60,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
