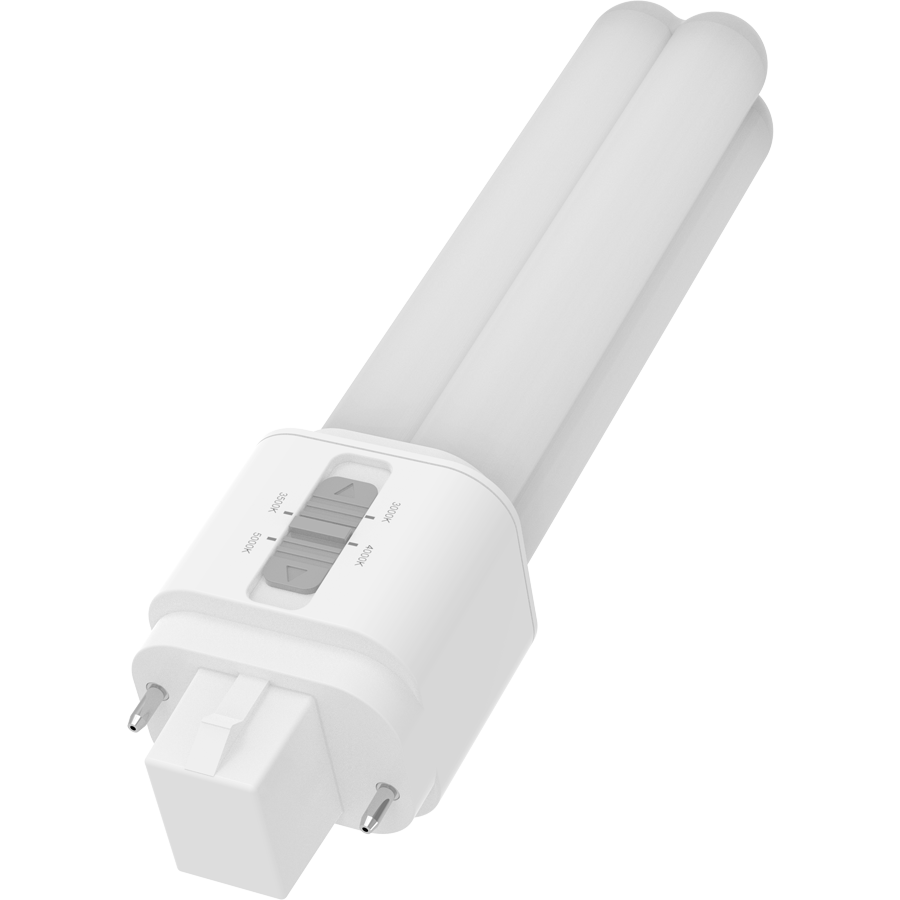

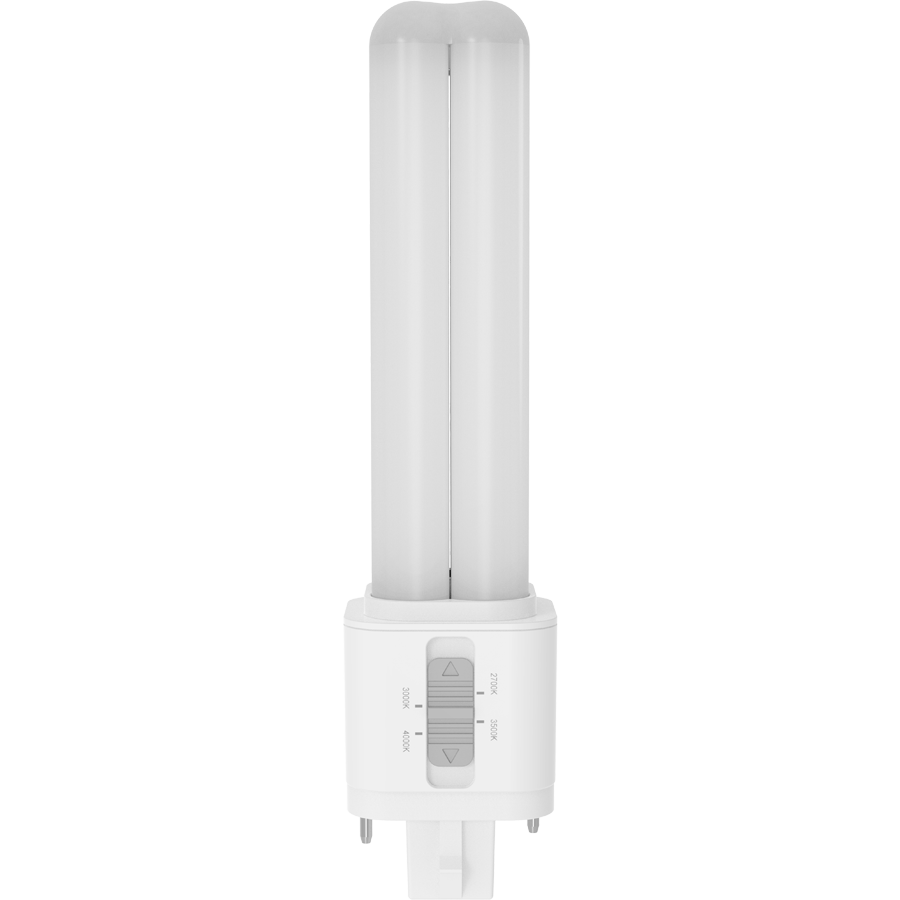

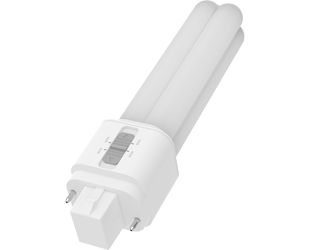

PLC-9-O-8FA-HYB-GX32D
PLC-9-O-8FA-HYB-GX32D
- 4 color temperatures in 1 SKU (2700/3000/3500/4000K)
- Omnidirectional light distribution, suitable for horizontal or vertical installations
- Compatible with G24d / GX24d & G24q / GX24q installations
- 5-Year, No-Compromise Warranty
- PLC Omnidirectional Lamps. 4-Pin & 2-Pin compact fluorescent replacements with CCT-Adjustability
Performance
| Watts | 9W |
| Color Temp | Default: 3000K<br><br> Field adjustable via dip switch 2700/3000/3500/4000K |
| Lumens | 1050/1100/1200/1200 lm |
| Efficacy | 117/122/133/133 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan |
| Input Voltage | N/A |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |

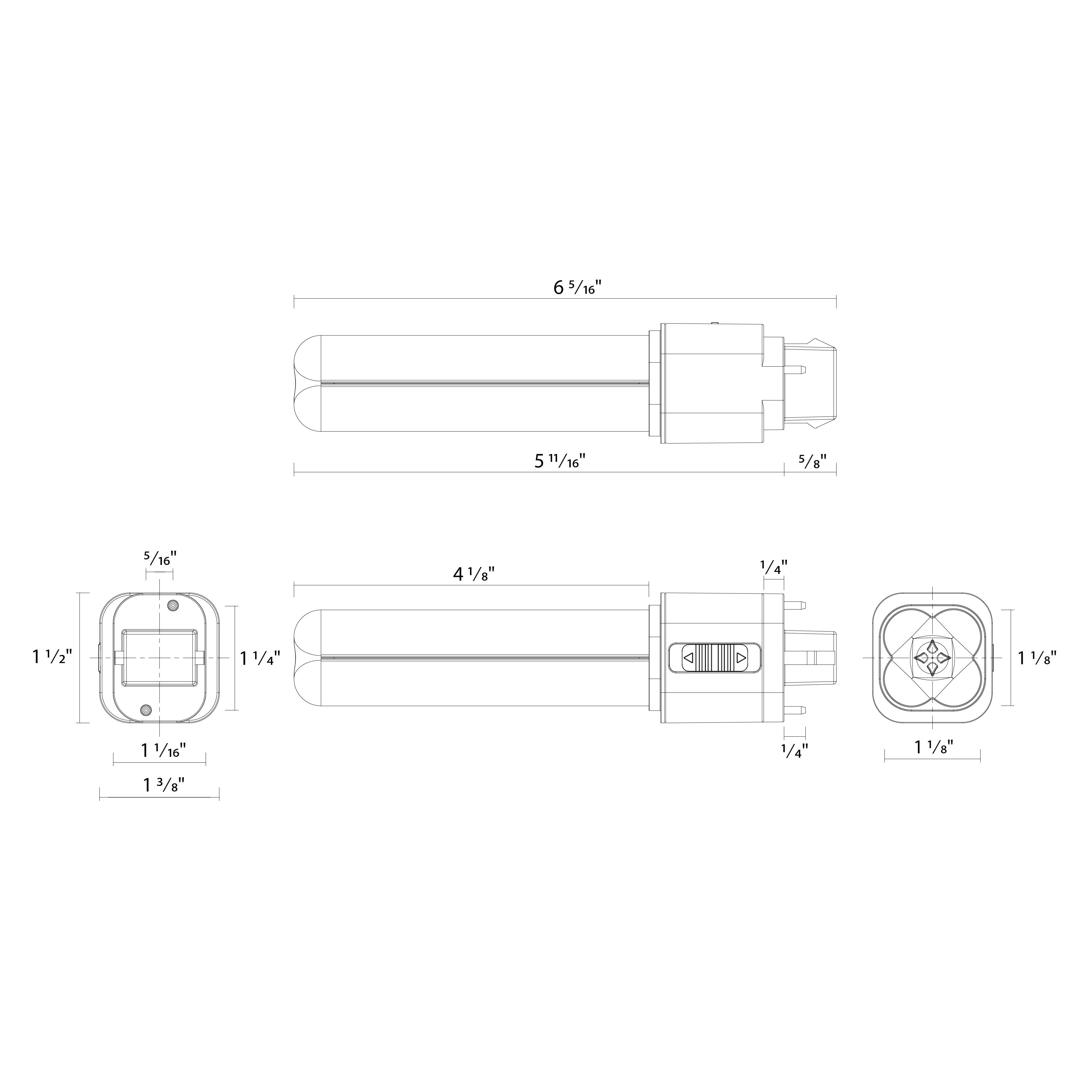

Dimensions
Weight: 0.2 lbs
Technical Specifications
Performance
Product Type
PLC Omnidirectional
Description
Omnidirectional, compact fluorescent replacements for 2-pin and 4-pin applications
Wattage Equivalency
27W CFL
Input Wattage
9W
Lumens (Nominal)
1,050/1,100/1,200/1,200lm
Efficacy
117/122/133/133lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120-277V 50/60 Hz; 120V: 46mA; 208V: 43mA; 240V: 38mA; 277V: 32mA
THD
<20%
Power Factor
0.9
Dimmable
No
Operating Temperature
-4°F to 113°F(-20 to 45°C)
Flicker
50%
LED Characteristics
Beam Angle
360°
Color Temperature
Default: 3000K
Field adjustable via dip switch 2700/3000/3500/4000K
Field adjustable via dip switch 2700/3000/3500/4000K
Color Accuracy (CRI)
>80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<7-step (3000/3500K) <5-step (2700K/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Base Type
GX32D 2-pin
Construction
Shape
PLC
Finish
White
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Compliance
Listings
UL Listed, UL Recognized
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Certification Model Number
T20136(PLC-9-O-8FA-HYB-GX32D)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
HALVS18L940-MG-A
Architectural 425 Lumens Halvs Forward & Up/Down Light 25W 90Cri 4000K Metallic Spun Gold Lens Antique Bronze Finish
IVAT2-100LSF750ZH/WS2
Area Lights 11058 Lumens Ivat2 Type Ii 94W Slipfitter Mount 70Cri 5000K Bronze 347-480V 0-10V Dimming 20 Feet Lens Wattstopper Sensor
LCBBR30-10-E26-9TW-SS-NS
Smart Lamps 800 Lumens Lightcloud Blue Controller Br30 10W Base E26 Smartshift 2700K-6500K White Natural Spectrum
IVAT2-100LSF750ZU
Area Lights 10739 Lumens Ivat2 Type Ii 94W Slipfitter Mount 70Cri 5000K Bronze 120V-277V 0-10V Dimming
HALVS18L940-MG-A
Architectural 425 Lumens Halvs Forward & Up/Down Light 25W 90Cri 4000K Metallic Spun Gold Lens Antique Bronze Finish
IVAT2-100LSF750ZH/WS2
Area Lights 11058 Lumens Ivat2 Type Ii 94W Slipfitter Mount 70Cri 5000K Bronze 347-480V 0-10V Dimming 20 Feet Lens Wattstopper Sensor

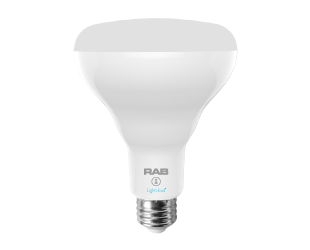

LCBBR30-10-E26-9TW-SS-NS
