PLL-13.5-830-DIR

Spec Sheet Dimmer Compatibility List Ballast Compatibility List Photometrics Report Instructions FCC Caution Spec Sheet

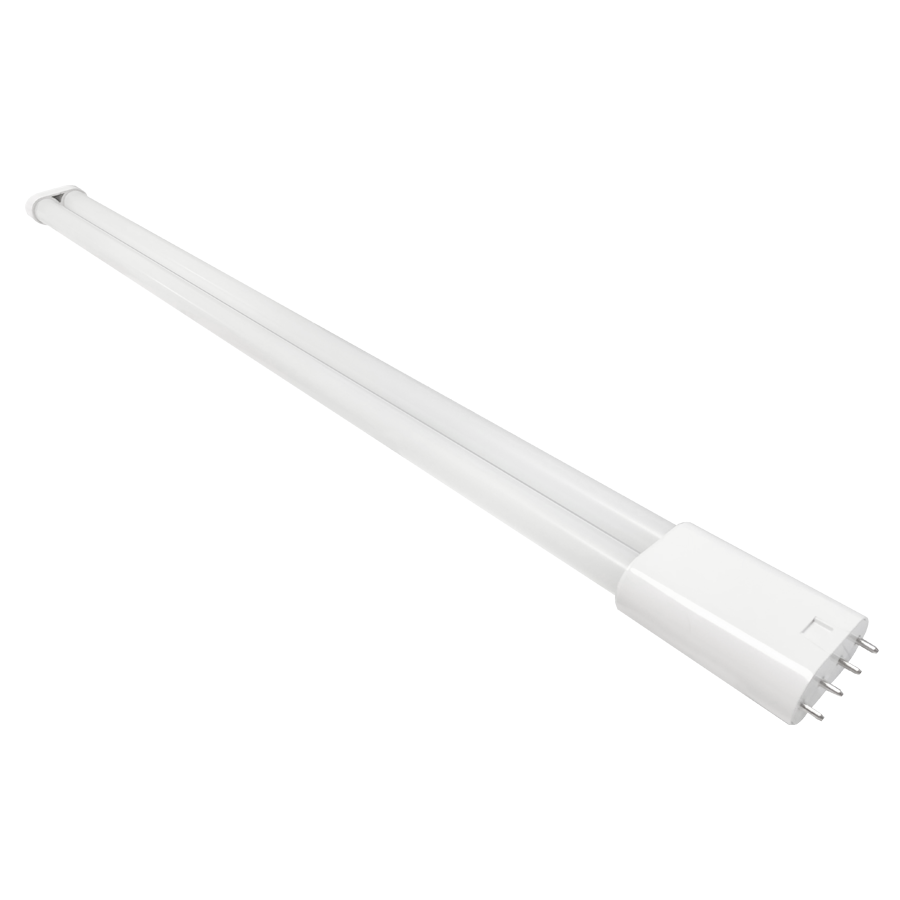

PLL-13.5-830-DIR

Replaces 36W twin tube CFL 2G11 Lamps

Ballast Compatible. Directly Compatible with Most Existing Electronic CFL Ballasts.

Compatible with 2G11 (4-pin CFL) installations

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Listed

Rated for use in enclosed and open fixtures in dry or damp locations

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	13W
Color Temp	3000K
Lumens	2,050 lm
Efficacy	152
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	108mA
208V
240V
277V	49mA
Input Watts	13.5W

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Compact

Input Wattage

13.5W

Lumens

2,050lm

Efficacy

152lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

ft40/2G11

Electrical

THD

20%

Power Factor

>0.9

Dimmable

Not suggested for dimming applications

Input Voltage

120-277V AC

Operating Frequency

50/60Hz

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

LED Characteristics

Color Accuracy (CRI)

Color Temperature

3000K

Beam Angle

140°

Construction

Shape

PLL

Enclosure Material

Polycarbonate Endcap with Glass

Housing Finish

White

Lens Finish

Frosted

Installation

Installation Method

UL Type A, Plug and Play

Burning Position

Horizontal

Other

Technology EQ

CFL

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

Listings

UL Listed

Environment

Damp / Enclosed

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Certification Model Number

T10226(PLL-13.5-830-DIR)

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
