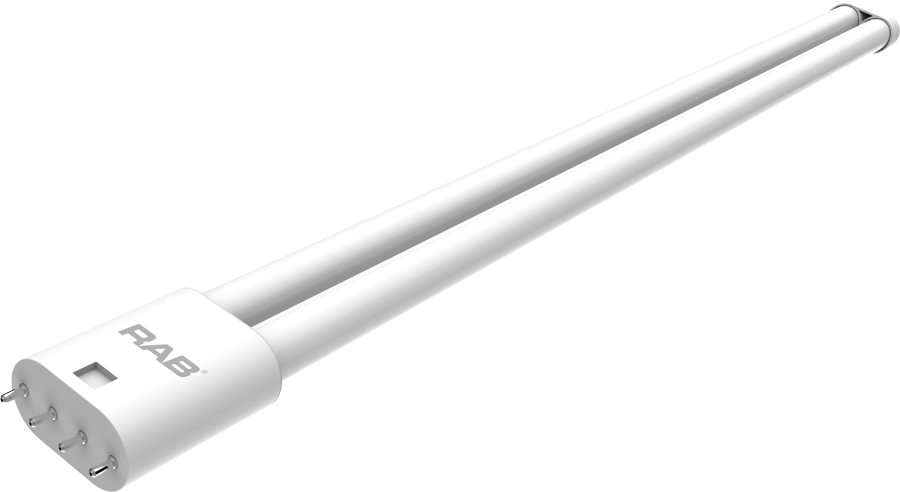

PLL-17-840-BYP
PLL-17-840-BYP
- Replaces 18W/26W/32W 2G11 CFL Lamps
- Ballast Bypass. Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Classified, DLC Listed
- Rated for use in enclosed and open fixtures in dry or damp locations
- 5 Year No Compromise Warranty
Performance
| Watts | 17W |
| Color Temp | 4000K |
| Lumens | 2,200 lm |
| Efficacy | 129.4 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277 |
| Power Factor | 0.9 |
| Flicker | N/A |
| THDi | N/A |

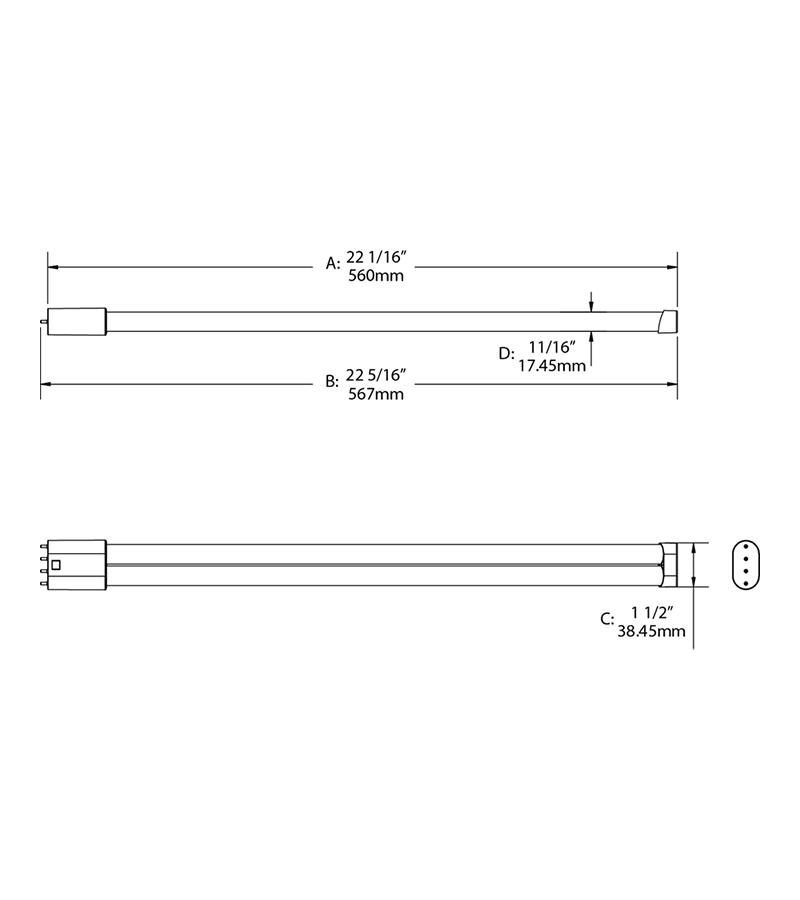

Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
Compact
Input Wattage
17W
Wattage Equivalency
40W Fluorescent
Lumens
2,200lm
Efficacy
129lm/W
L70 Lifespan
50,000 Hours
Electrical
THD
<20%
Power Factor
0.9
Dimmable
Not suggested for dimming applications
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Construction
Shape
PLL
Finish
Frosted
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
4000K Cool White
Color Accuracy (CRI)
82 CRI
Installation
Base Type
2G11
Installation Type
Type B, Ballast Bypass
Installation Orientation
Horizontal
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Recognized
Yes
UL Classified
Yes
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
Certification Model Number
PLL-17-840-BYP
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PJMAWKQ7
DLC Product Code: PJMAWKQ7
