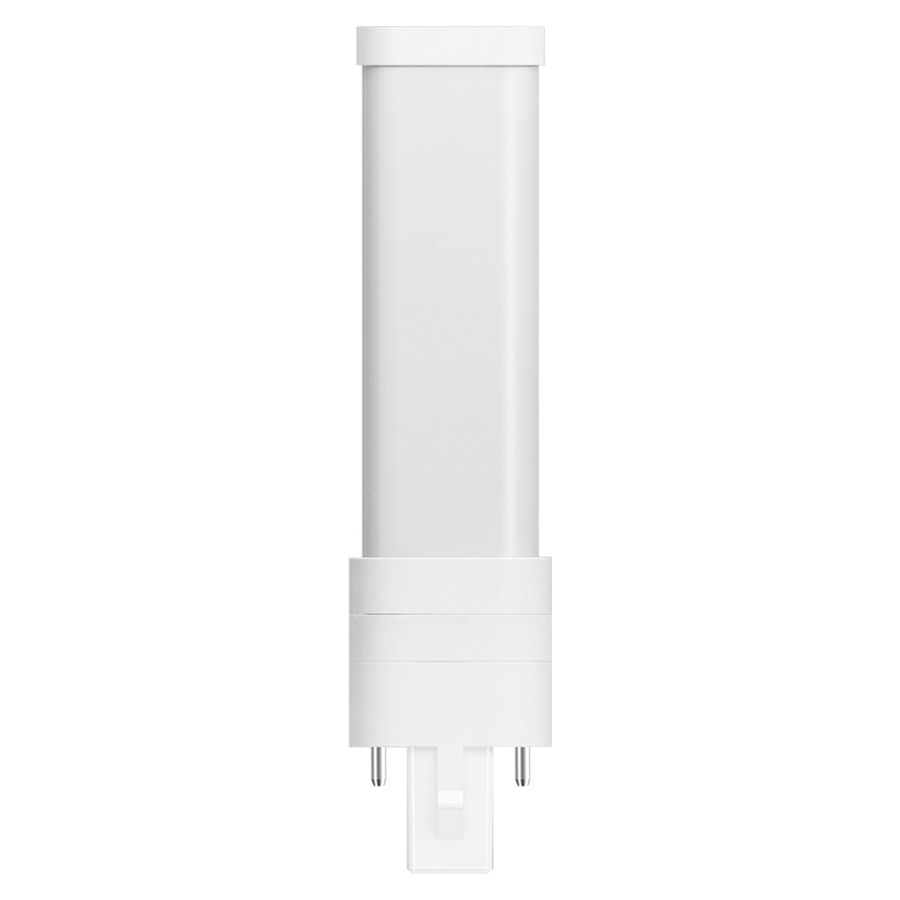

PLS-3.5-H-840-HYB

Spec Sheet Photometrics Report Instructions FCC Caution Spec Sheet

PLS-3.5-H-840-HYB

Replaces 13W CFL Lamps

Plug and Play on existing magnetic CFL ballasts or can be wired directly to line voltage without need for an external driver or ballast

Compatible with Gx23 base installations

50,000 hour Lifespan

Environmentally friendly, no mercury used

UL Classified

Rated for use in enclosed and open fixtures in dry or damp locations

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	3W
Color Temp	4000K
Lumens	350 lm
Efficacy	100
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	30mA
208V
240V
277V	13mA
Input Watts	3.5W

Dimensions

Weight: 0.1 lbs

Technical Specifications

Performance

Product Type

Compact

Input Wattage

3.5W

Lumens

350lm

Efficacy

100lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

7W/9W G23

LED Characteristics

Color Accuracy (CRI)

Color Temperature

4000K

Beam Angle

120°

Electrical

THD

20%

Power Factor

>0.9

Dimmable

Non-Dim

Input Voltage

120-277 Type B (Type A dependent on ballast)

Operating Frequency

50/60Hz

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Construction

Shape

PLS-Horizontal

Enclosure Material

Constructed from frosted, shatter-resistant polycarbonate

Housing Finish

White

Lens Finish

Frosted

Installation

Base Type

2-Pin G23

Installation Method

UL Type A with Magnetic Ballasts & UL Type B (Dual Mode)

Burning Position

Horizontal

Other

Technology EQ

CFL

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

Listings

UL Listed, UL Classified

Environment

Damp / Enclosed

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Certification Model Number

T10205(PLS-3.5-H-840-HYB)
