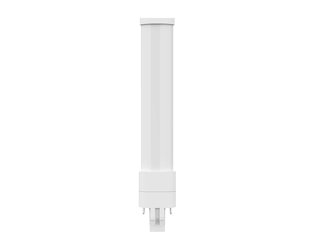

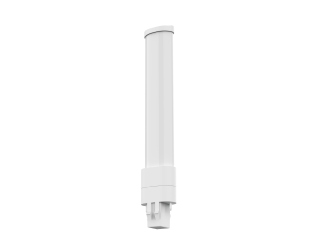

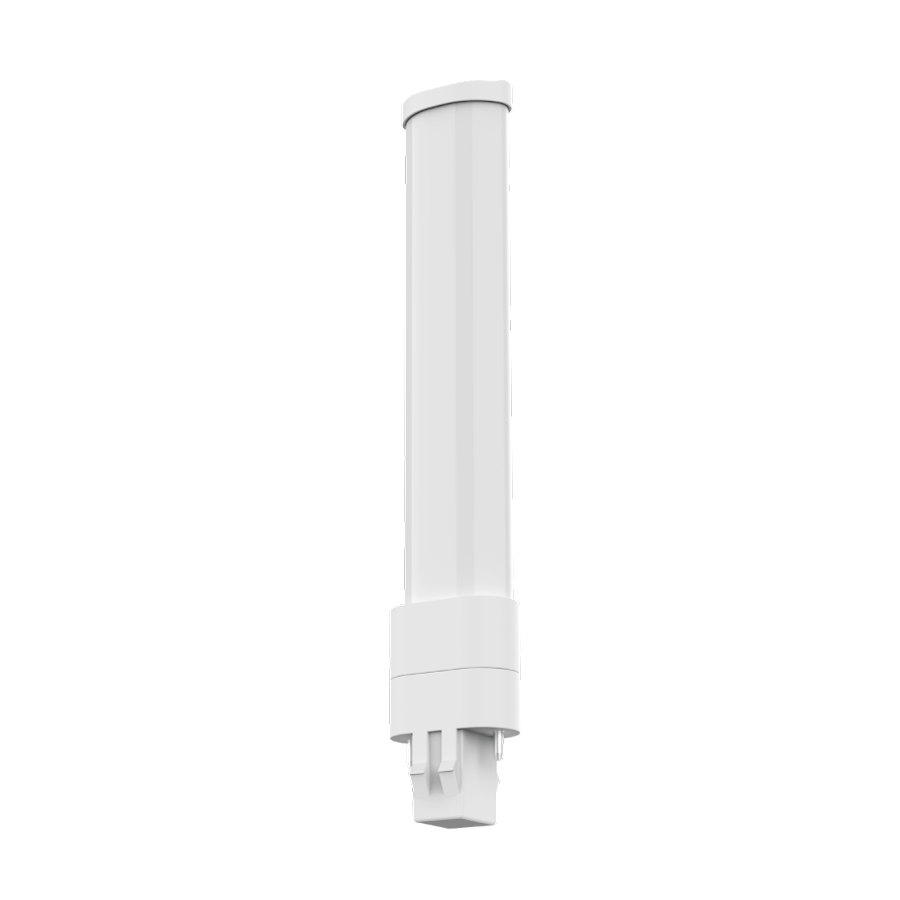

PLS-5.2-H-840-HYB
PLS-5.2-H-840-HYB
- Replaces 13W CFL Lamps
- Plug and Play on existing magnetic CFL ballasts or can be wired directly to line voltage without need for an external driver or ballast
- Compatible with Gx23 base installations
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Classified
- Rated for use in enclosed and open fixtures in dry or damp locations
- 5 Year No Compromise Warranty
Performance
| Watts | 5W |
| Color Temp | 4000K |
| Lumens | 600 lm |
| Efficacy | 109 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.05A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5.5W |
Dimensions
Technical Specifications
Performance
Product Type
Compact
Input Wattage
5.5W
Lumens
600lm
Efficacy
109lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
11W CFL
Compliance
UL Listed
Suitable for damp locations
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
4000K
Color Accuracy (CRI)
≥80 CRI
Beam Angle
120°
Construction
Shape
PLS-Horizontal
Endcap Material
Copper
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Installation
Base Type
Gx23
Electrical
THD
20%
Power Factor
0.9
Flicker
50%
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
120-277V
Operating Frequency
50/60Hz
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
