PLT-16-V-850-DIR
PLT-16-V-850-DIR
- Replaces 42W G24q Lamps
- Ballast Compatible. Directly Compatible with Most Existing CFL Ballasts.
- Compatible with G24q / GX24q (4-pin CFL) installations
- 50,000 hour Lifespan
- Environmentally friendly, no mercury used
- UL Listed, DLC Listed
- Rated for use in enclosed and open fixtures in dry or damp locations
- 5 Year No Compromise Warranty
Performance
| Watts | 16W |
| Color Temp | 5000K (Daylight) |
| Lumens | 1,850 lm |
| Efficacy | 115.6 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | Ballast Dependent |
| Power Factor | Ballast Dependent |
| Flicker | N/A |
| THDi | N/A |

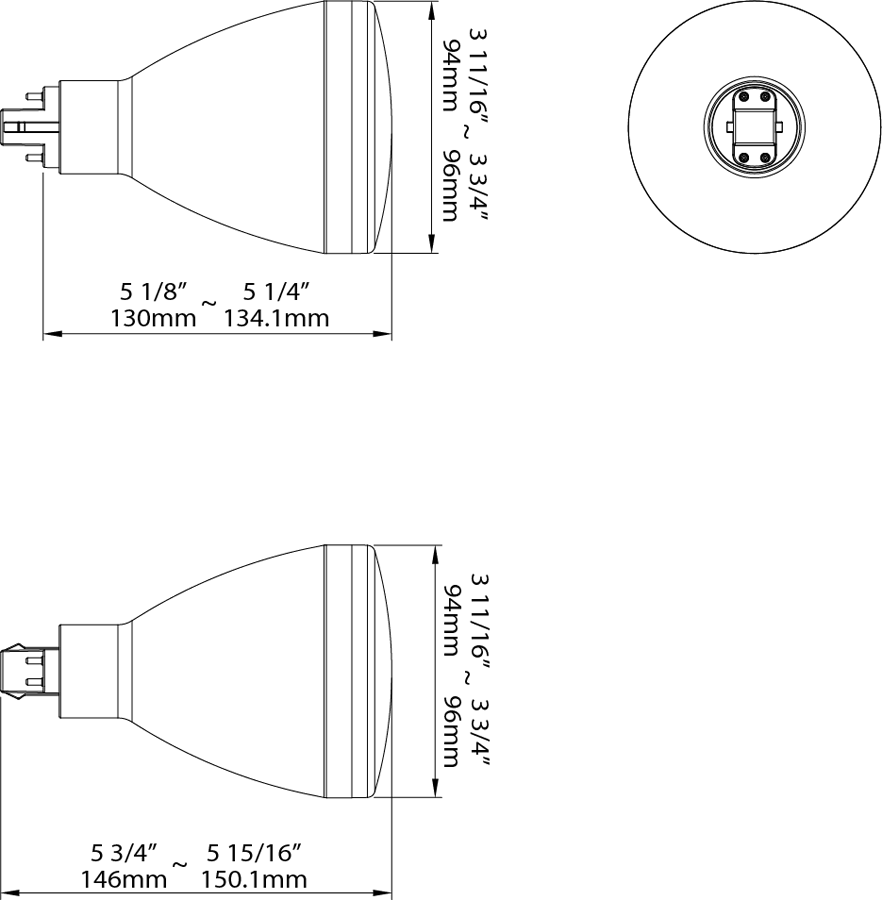

Dimensions
Weight: 0.3 lbs
Technical Specifications
Performance
Product Type
Compact
Input Wattage
16W
Wattage Equivalency
42W Fluorescent
Lumens
1,850lm
Efficacy
115lm/W
L70 Lifespan
50,000 Hours
Dimming
Compatible with RAB specified 0-10V dimming system. Dimming capabilities were tested and verified on 0-10V ballast Philips-Advance IZT-2S26-M5-LDand 0-10V dimming system.
Construction
Shape
PLT-Vertical
Finish
Frosted
For Use Outdoors in Open Fixtures
No
LED Characteristics
Color Temperature
5000K Daylight
Color Accuracy (CRI)
82 CRI
Beam Angle
100°
Installation
Base Type
GX24q
Installation Type
Type A, Plug and Play
Installation Orientation
Vertical
Electrical
Power Factor
Ballast Dependent
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
Ballast Dependent
Operating Frequency
Ballast Dependent
Input Current @ 120V
Ballast Dependent
Input Current @ 277V
Ballast Dependent
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
UL Listed
Yes
California Energy Commission (CEC) Status
Lawful for Sales in California
Application
Suitable for damp locations and totally enclosed fixtures.
Certification Model Number
T10099
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
