PR4-07-30WT
PR4-07-30WT large main
  • Designed for ground mounting
  • Heavy duty TGIC polyester coating
  • Reinforced hand holes with grounding lug and removable cover for easy wiring access
  • Pole caps, base covers & bolts are sold separately
  • Custom manufactured for each application
 View Technical Specs
View Price & Availability
Dimensions

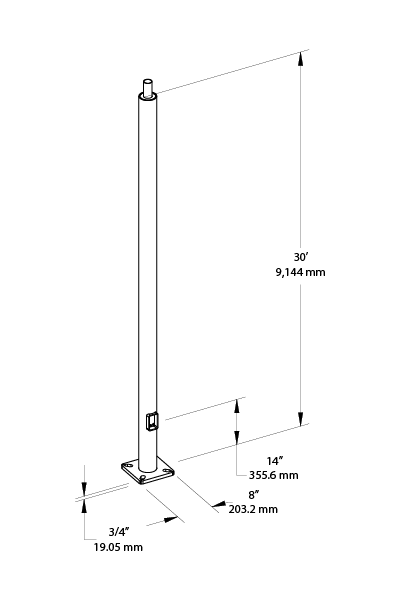

Link to Dimension Drawing

Weight: 258.6 lbs

Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Performance
Description
Steel pole 4" round 7 gauge 30 foot welded tenon square base
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Color
Bronze powder coating
Height
30 ft
Gauge
7
Wall Thickness
3/16"
Shaft Size
4"
Anchor Bolt Templates
WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 6.1 ft/300 lb.
80MPH 3.5 ft/200 lb.
90MPH 1.8 ft/130 lb.
100MPH 0.5 ft/100 lb
Accessories
Base/Cap: BASE-R4
Anchor Bolts: BOLT4/7
Other
Terms of Sale
Pole Terms of Sale is available online.

Recently Viewed Products

This is a link to the product NDLED6SD-50YNHC-W-B NDLED6SD-50YNHC-W-B
Recessed Downlights 20 Lumens Ndled6Sd 6 Inch Square Universal Dimming 50 Degree Beam Spread 3500K 90Cri White Cone Black Trim
This is a link to the product IVAFT-100LWM730WH/7PRLC IVAFT-100LWM730WH/7PRLC
Ivelot Ft 100W 10000L Wall 3000K 70 Cri White 347-480V Dim 7Pr Lc

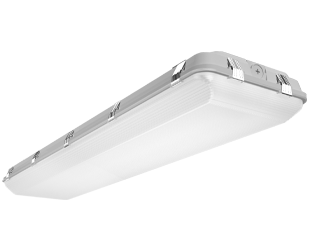

This is a link to the product WHALE4H WHALE4H
