PR4-11-15D2
PR4-11-15D2 large main
  • Designed for ground mounting
  • Heavy duty TGIC polyester coating
  • Reinforced hand holes with grounding lug and removable cover for easy wiring access
  • Pole caps, base covers & bolts are sold separately
  • Custom manufactured for each application
 View Technical Specs
View Price & Availability

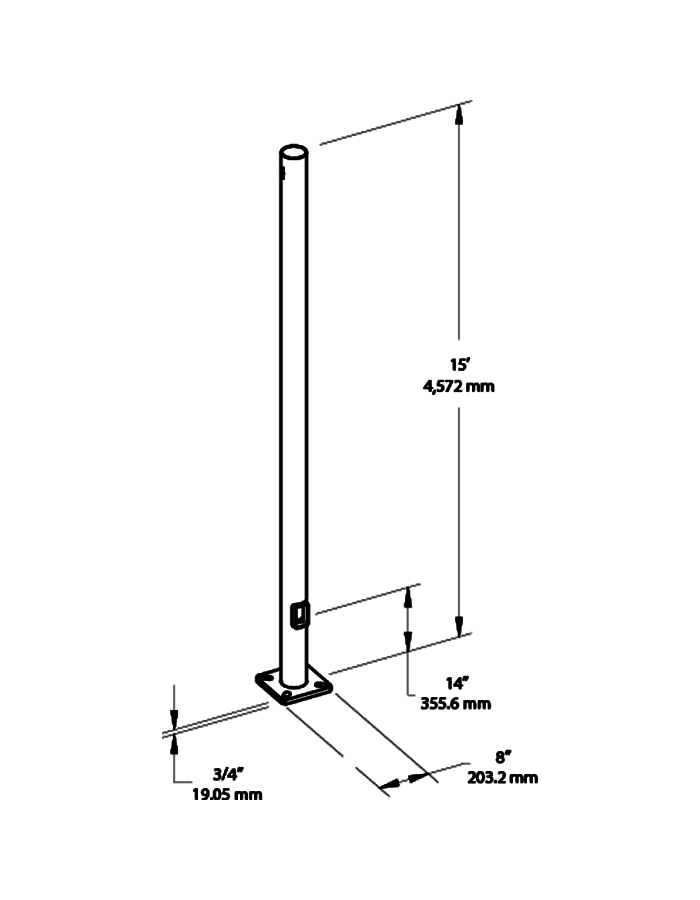

Dimensions
Link to Dimension Drawing

Weight: 91.0 lbs

Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Performance
Description
Steel pole 4" round 11 gauge 15 foot drilled two sides square base
Construction
Shaft
46,000 p.s.i. minimum yield.
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Color
Bronze powder coating
Height
15 ft
Gauge
11
Wall Thickness
1/8"
Shaft Size
4"
Anchor Bolt
Anchor bolt kits are sold separately. Order ABK4-11-BCK-R4 for anchor bolt kits.
Anchor Bolt Templates
WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 11.7 ft/650 lb.
80MPH 8.5 ft/595 lb.
90MPH 6.2 ft/530 lb.
100MPH 4.6 ft/430 lb.
110MPH 3.4 ft/325 lb.
120MPH 2.5 ft/295lb.
130MPH 1.8 ft/220 lb.
140MPH 1.3 ft/200 lb.
150MPH 0.8 ft/165 lb
Accessories
Base/Cap: BCK-R4
Anchor Bolts: BOLT4/11
Other
Terms of Sale
Pole Terms of Sale is available online.
