PR4-11-15WT - RAB Lighting

PR4-11-15WT

Spec Sheet Spec Sheet

PR4-11-15WT large main

PR4-11-15WT

Designed for ground mounting

Heavy duty TGIC polyester coating

Reinforced hand holes with grounding lug and removable cover for easy wiring access

Pole caps, base covers & bolts are sold separately

Custom manufactured for each application

View Technical Specs

View Price & Availability

Dimensions

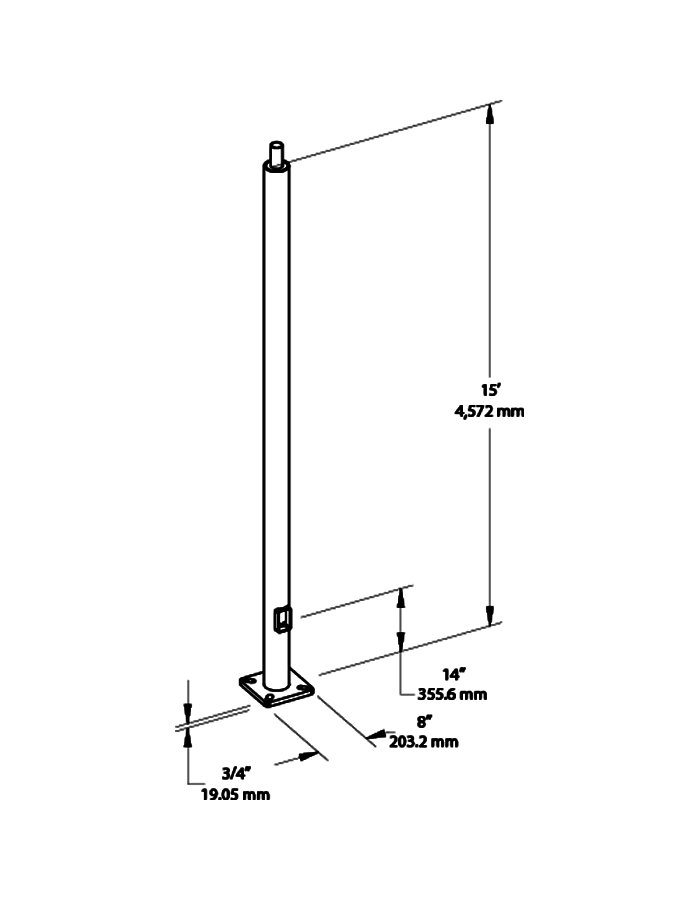

Link to Dimension Drawing

Weight: 93.3 lbs

Technical Specifications

Compliance

CSA Listed

Suitable for wet locations

Performance

Description

Steel pole 4" round 11 gauge 15 foot welded tenon square base

Construction

Shaft

46,000 p.s.i. minimum yield.

Hand Holes

Reinforced with grounding lug and removable cover

Base Plates

Slotted base plates 36,000 p.s.i.

Color

Bronze powder coating

Tenon

Welded 2 3/8" tenon included

Height

15 ft

Gauge

11

Wall Thickness

1/8"

Shaft Size

4"

Anchor Bolt

Anchor bolt kits are sold separately. Order ABK4-11-BASE-R4 for anchor bolt kits.

Anchor Bolt Templates

WARNING Template must be printed on 11" x 17" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.

Max EPA's/Max Weights

70MPH 11.7 ft/650 lb.
80MPH 8.5 ft/595 lb.
90MPH 6.2 ft/530 lb.
100MPH 4.6 ft/430 lb.
110MPH 3.4 ft/325 lb.
120MPH 2.5 ft/295lb.
130MPH 1.8 ft/220 lb.
140MPH 1.3 ft/200 lb.
150MPH 0.8 ft/165 lb

Accessories

Base/Cap: BASE-R4
Anchor Bolts: BOLT4/11

Other

Terms of Sale

Pole Terms of Sale is available online.
