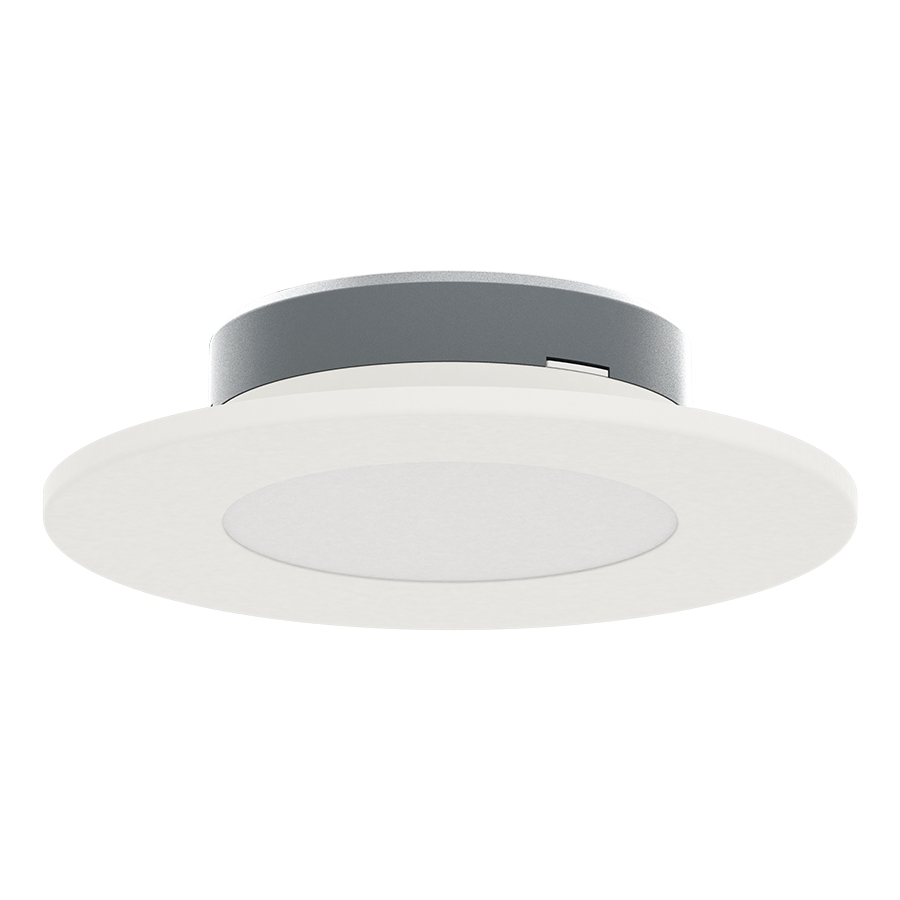

PUCKFA-4R-7.5-9CCT-120-WS
PUCKFA-4R-7.5-9CCT-120-WS
- Slim wafer design - fits in 4" can or 4" J-Box
- Suitable for dry, damp, and wet environments
- Steel trim with magnetic design for quick trim replacement
- Trim color options available in Brushed Nickel, Black, and Bronze
- Includes E26 cap as an accessory to meet T24 & T20 requirements
- Field adjustable color temperature options from 2700/3000/3500/4000/5000K
- High performance >90CRI to provide accurate color rendering
Performance
| Watts | 7W |
| Color Temp | |
| Lumens | 700 lm |
| Efficacy | 93.3 |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.07A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 7.5W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Description
Slim wafer design with the flexibility to fit in a 4" recessed housing or 4" J-box. Field selectable color temperatures options 2700K, 3000K, 3500K, 4000K or 5000K at 90CRI.
Product Type
Recessed Downlights
Input Wattage
7.5W
Lumens
650lm
Efficacy
87lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Compliance
UL Listed
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 1.0 Certified
Certification Model Number
DLC0052(C8R559FAUNVW)
Energy Star ID
3436423
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 10%.
THD
≤20%
Power Factor
≥0.9
Flicker
≤30%
Input Voltage
120V
Operating Frequency
60Hz
Construction
Material
Metal
Trim Style
Smooth Trim
Shape
Round
Operating Temperature
-4°F(-20°C) to 104°F (40°C )
Size
4"
Installation
Base Type
E26 Edison
Mounting
Surface and recessed mount.
Compatible with 4" metal octagon or 4" plastic j-boxes with min. 3.2" clearance.
Compatible with 4" metal octagon or 4" plastic j-boxes with min. 3.2" clearance.
LED Characteristics
R9 Value
High color performance with R9 greater than or equal to 50
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
