R34S-6-B

Spec Sheet IES File LM79 Instructions Family Spec Sheet Spec Sheet EZ Layout

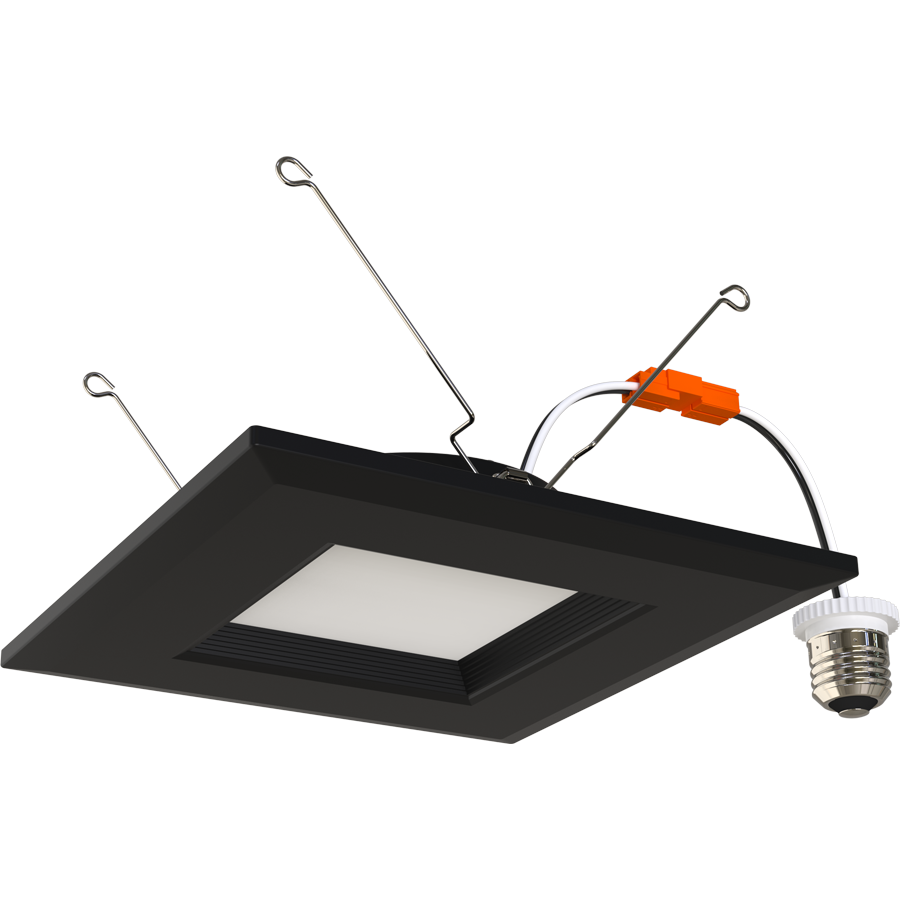

R34S-6-B

4" & 5/6" Recessed LED trims are compatible with most recessed housings

Lumen outputs: 4" - up to 650 lumens, 6" up to 1,050 lumens

5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K

Constructed from UV resistant polycarbonate available in a smooth splay reflector or baffled trim with a smooth flat frosted polycarbonate lens

Available in Painted White or Black finish.

Dimmable down to 10% with compatible TRIAC/ELV dimmers, see dimmer compatibility list

5-year warranty, 50,000 hours lifespan, Title 20 compliant, wet location rated

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp
Lumens	900 lm
Efficacy	100
Color Accuracy	2700/3000/3500/4000/5000K CRI
L70 Lifespan

Type	Constant Current
120V	0.07A
208V
240V
277V
Input Watts	9W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

LED Trim - Polycarbonate

Description

Available in 4" and 6" models with 5 field-adjustable color temperatures. Offered with smooth or baffle trims. Ideal for applications with tighter budgets.

Wattage Equivalency

75W Incandescent

Input Wattage

Lumens

900lm

Lumens (Measured)

2700K: 947lm
3000K: 977lm
3500K: 1009lm
4000K: 989lm
5000K: 937lm

Efficacy

100lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current

Power Factor

≥0.7

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

90mA

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Flicker

≤30%

LED Characteristics

Beam Angle

90°

Color Temperature

Field-adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

≥90

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Mounting

Recessed can housing

Construction

Size

Shape

Square

Finish

Black

Material

Constructed from robust UV resistant polycarbonate

Trim Style

Baffle

Lens Finish

Frosted

Lens

Smooth flat profile polycarbonate lens diffuser

Compliance

Listings

UL Classified, UL Recognized

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Depends on recessed housing used

Air Tight

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLR0167(R34S-6-B)

California Title 20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

NDCANIC6R
6" Recessed housing, new construction

RDCANIC6R
6" Recessed housing, remodeler

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
