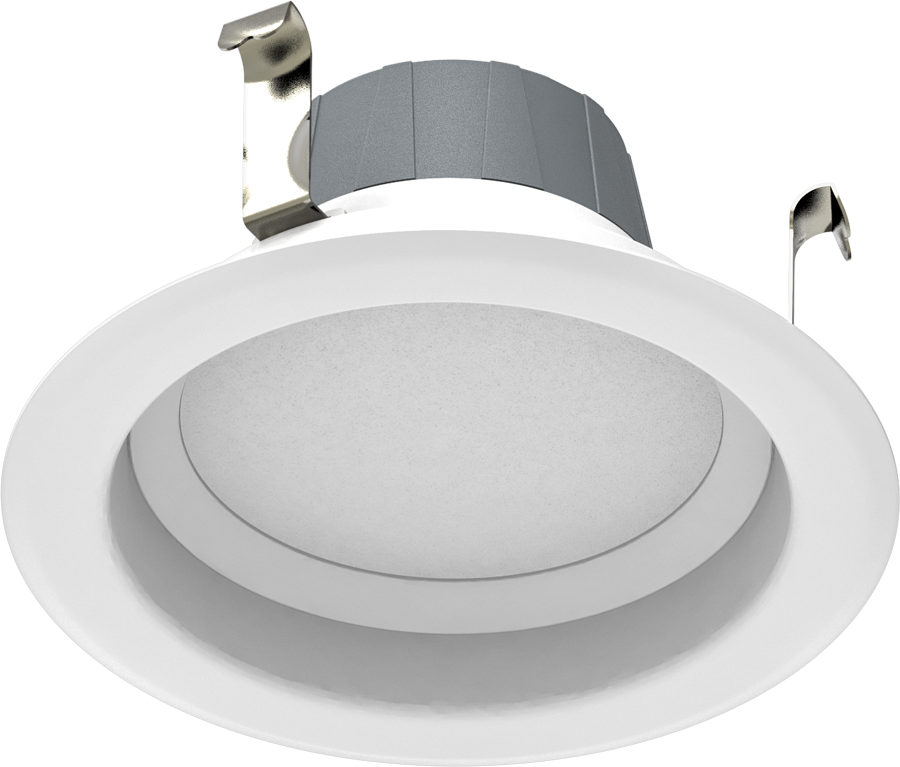

R4R8840120WS
R4R8840120WS
- High Performance LEDS up to 106 lm/w
- Use to replace up to 100W traditional light sources
- Durable metal construction: dent and scratch resistant
- UL wet location rated
- Compatible with most standard recessed housings
- Dimmable down to 5% on compatible dimmers
- Available in Round 4" 850lm and 6" 850lm, 1050lm and 1400lm
- Available in 4 color temperatures: 2700K, 3000K, 3500K, 4000K
- Available in a smooth and baffle trim option
- Color designer trims as optional accessories available
- 5-Year, No-Compromise Warranty
Performance
| Watts | 8W |
| Color Temp | 4000K (Neutral) |
| Lumens | 897 lm |
| Efficacy | 100 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.07A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 7.5W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Compliance
UL Classified
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLR0039
Energy Star ID
2350058
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.
THD
<20%
Power Factor
≥0.9
THDi
Produces less than 20% THD
PF
≥0.9
Input Voltage
120V
Flicker
Silent and flicker free operations of less than 30%
Operating Frequency (Hz)
60Hz
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
65W Incandescent
Construction
Shape
Round
Trim Style
Smooth Trim
Housing
Constructed from durable steel sheet metal
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Frosted polycarbonate diffusion lens. Regressed lens. Constructed from durable sheet metal construction.
Green Technology
Mercury and UV free. RoHS-compliant components.
Socket Adapter
Edison 26 Medium Base Socket adapter included in box
Finish
Matte White
LED Characteristics
Beam Angle
95°±10°
LEDs
Long-life, high-efficacy, surface-mount LEDs
Installation
Mounting
Easy installation with friction clips (4") and torsion springs (5"/6")
Other
Compatibility
Compatible with most common 4" recessed housings
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
