RA6R119FA120BS
RA6R119FA120BS
- 4" & 5/6" Recessed LED trims are compatible with most recessed housings
- Lumen outputs: 4" - 850 lumens, 6" - 950 & 1,150 lumens

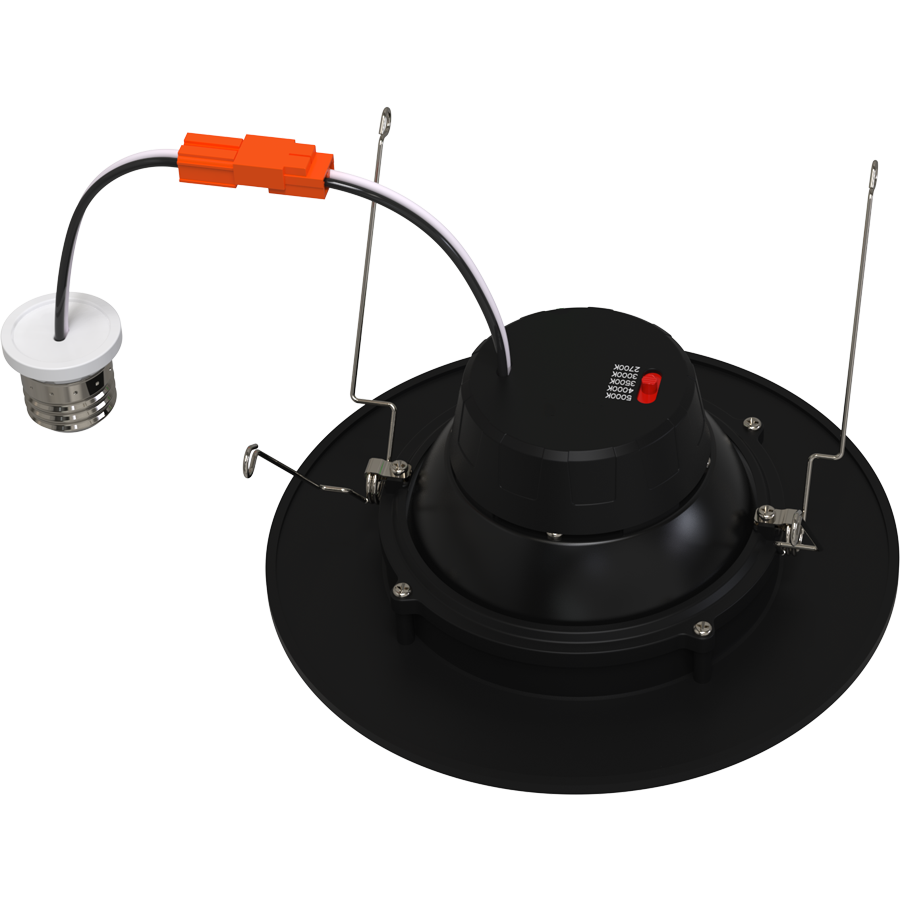

- 5 Color temperature selectable 2700K, 3000K, 3500K, 4000K, & 5000K

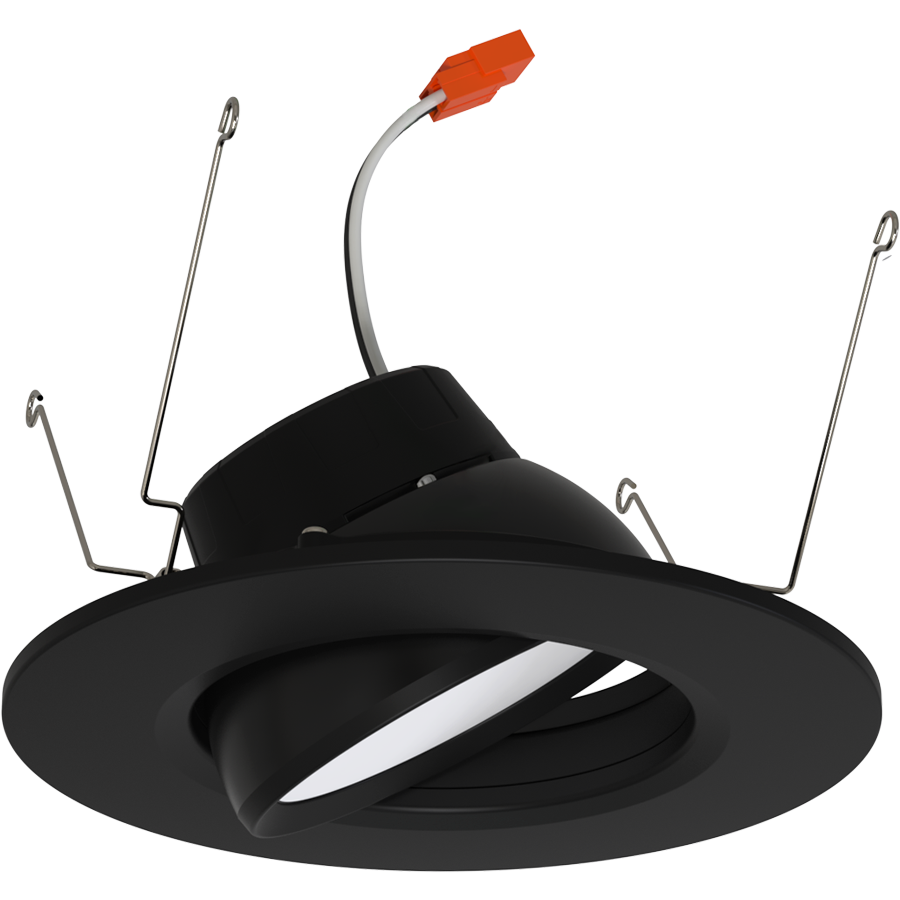

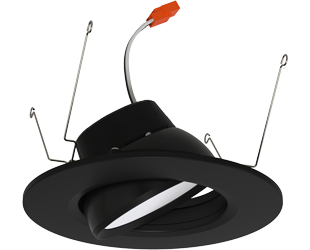

- Adjustable gimbal with 35 degree tilt constructed from die-cast aluminum with a smooth frosted lens
- Available in Painted White or Black finish.
- Dimmable down to 10% with compatible TRIAC/ELV dimmers, see dimmer compatibility list
- 5-year warranty, 50,000 hours lifespan, Title 24 JA8 and Title 20 compliant, wet location rated
Performance
| Watts | 11W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,100 lm |
| Efficacy | 100 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 11W |

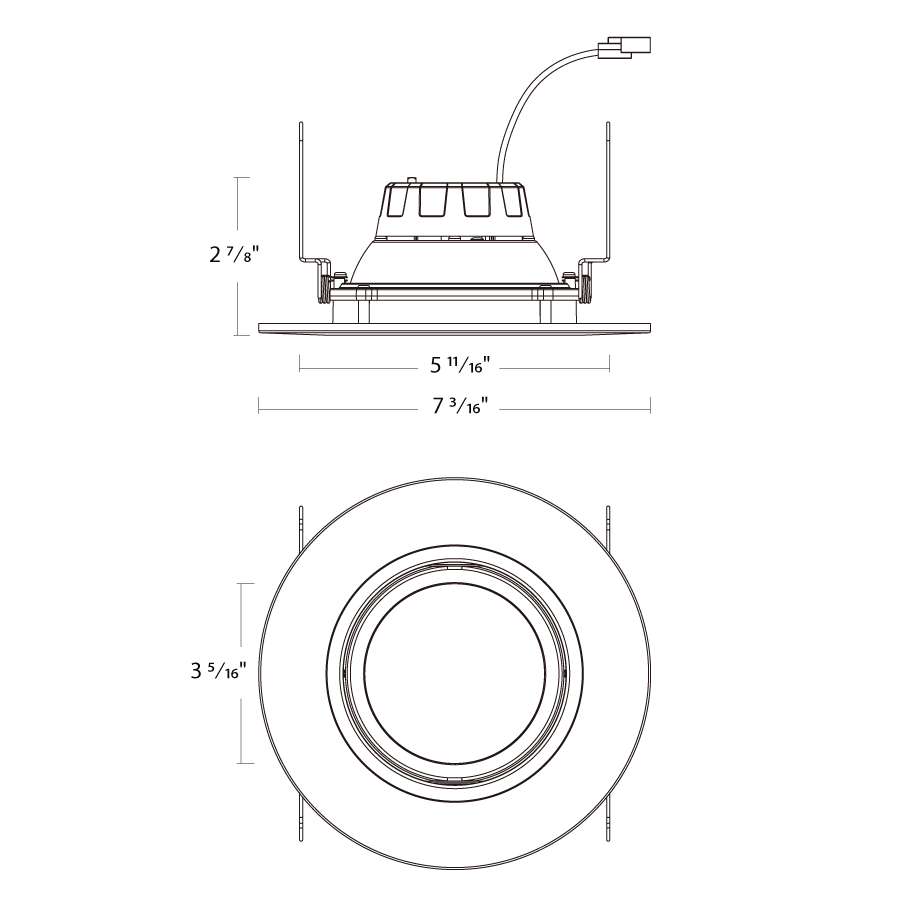

Dimensions
Technical Specifications
Performance
Product Type
LED Trim - Metal
Description
Contractor-grade retrofit gimbals offered with up to 5 field selectable color temperatures available in white & black finish.
Wattage Equivalency
100W Incandescent
Input Wattage
11W
Lumens
700lm
Lumens (Measured)
2700K: 1127lm
3000K: 1163lm
3500K: 1213lm
4000K: 1236lm
5000K: 1227lm
3000K: 1163lm
3500K: 1213lm
4000K: 1236lm
5000K: 1227lm
Efficacy
100lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
100mA
Operating Temperature
-4°F to 104°F (-20 to 40°C)
Flicker
≤30%
LED Characteristics
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed with housing
Construction
Size
6"
Shape
Round
Finish
Black
Material
Constructed from spun aluminum
Trim Style
Smooth Splay
Lens Finish
Frosted
Lens
Regressed adjustable gimbal lens with a 35 tilt angle
Compliance
Listings
UL Listed, UL Recognized
Environment
Suitable for use indoors in dry and damp environments.
IC Rated
Depends on recessed housing used
Air Tight
No
Energy Star Approved
This product is ENERGY STAR® Certified.
Certification Model Number
DLR0170(RA6R109FA120BS)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
NDCANIC6R
6" Recessed housing, new construction
RDCANIC6R
6" Recessed housing, remodeler
6" Recessed housing, new construction
RDCANIC6R
6" Recessed housing, remodeler
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
