RAIL175N/480
RAIL175N/480
- 100,000-Hour LED lifespan
- DLC Premium Listed
- 0-10V dimming, standard
- 5-Year, No-Compromise Warranty
Performance
| Watts | 175W |
| Color Temp | 4000K (Neutral) |
| Lumens | 25,965 lm |
| Efficacy | 147.1 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 176.5W |
Dimensions
Weight: 11.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 400W Metal Halide
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED Color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 480V, 50/60Hz, 480V: 0.36A
THD
10.08% at 480V
Power Factor
92.7% at 480V
Surge Protection
6 kV
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 113°F (45°C)
Housing
Extruded aluminum
Lens
Polycarbonate lens
Reflector
Polyethylene Terephthalate (PET)
Installation
Mounting
V hooks (chain by others)
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
IVAFT-45LSF740WH
Area Lights 5123 Lumens Ivaft Forward Throw 38W Slipfitter Mount 70Cri 4000K White 347-480V 0-10V Dimming
X17PA450NSF/PCT
Floodlights 36975/51765/64951 Lumens X17 Power Adjustable 450/350/250W 4000K Slipfitter Twistlock Photocell Bronze
IVAFT-75LSF730GU/7PR/LC
Area Lights 7460 Lumens Ivaft Forward Throw 67W Slipfitter Mount 70Cri 3000K Roadway Gray 120V-277V 0-10V Dimming 7-Pin Receptacle Lightcloud Controller

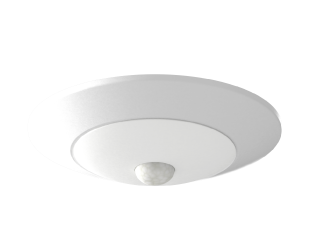

DSKFA-4R109CCT120WS/PIR
