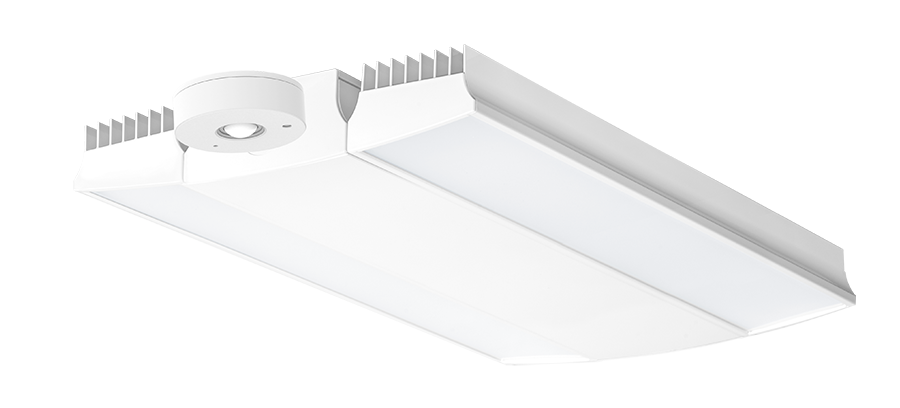

RAIL225W/D10/LCS
RAIL225W/D10/LCS
- Ideal for large spaces
- 100,000-hour lifespan - virtually maintenance free operation
- 0-10V driver for variable dimming down to 10%
- Low-glare design with semi-diffuse lens
Performance
| Watts | 225W |
| Color Temp | 5000K (Cool) |
| Lumens | 26,731 lm |
| Efficacy | 136.1 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.68A |
| 208V | 1.02A |
| 240V | 0.88A |
| 277V | 0.74A |
| Input Watts | 196.4W |
Dimensions
Weight: 20.8 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreCompliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Lightcloud
Lightcloud Sensor Installed
Occupancy, vacancy, and closed loop daylight harvesting in one versatile sensor. In addition control any fixture in your Lightcloud integrated/embedded networked lighting luminaire-level control system. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 1.68A, 208V: 1.02A, 240V: 0.88A, 277V 0.74A
THD
4.47% at 120V, 6.56% at 277V
Power Factor
99.9% at 120V, 95% at 277V
