RAILP400NW/480/D10
RAILP400NW/480/D10
- Ideal for large spaces
- 100,000-hour lifespan - virtually maintenance free operation
- 0-10V driver for variable dimming down to 10%
- Low-glare design with semi-diffuse lens
Performance
| Watts | 400W |
| Color Temp | 4000K (Neutral) |
| Lumens | 53,859 lm |
| Efficacy | 147 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 366.3W |
Dimensions
Weight: 46.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED Color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 480V, 50/60Hz, 480V: 0.86A
THD
9.61% at 480V
Power Factor
98.2% at 480V
Recently Viewed Products
SLIM22-S-60/E
Slim Wall Pack Small 60/50/40/30W 3000K/4000K/5000K Batt B/U Adjustable Optic 0Deg, 15Deg, 30Deg, 45Deg Bronze
RDLED2AR8-30YHC-TLS
Recessed Downlights 571 Lumens Rdled2Ar8 2 Inch Adjustable Round 8W 30 Degree Beam Spread 90Cri 3000K Trimless Matte Silver Trim Ring
GN1LED13NST11I
Decorative 647 Lumens Gooseneck 13W 4000K 24 Inches Arm Straight Shade Flood 11 Inches Ivory
IVAFT-75LSF750ZU/7PR/LC
Area Lights 7927 Lumens Ivaft Forward Throw 67W Slipfitter Mount 70Cri 5000K Bronze 120V-277V 0-10V Dimming 7-Pin Receptacle Lightcloud Controller
SLIM22-S-60/E
Slim Wall Pack Small 60/50/40/30W 3000K/4000K/5000K Batt B/U Adjustable Optic 0Deg, 15Deg, 30Deg, 45Deg Bronze
RDLED2AR8-30YHC-TLS
Recessed Downlights 571 Lumens Rdled2Ar8 2 Inch Adjustable Round 8W 30 Degree Beam Spread 90Cri 3000K Trimless Matte Silver Trim Ring

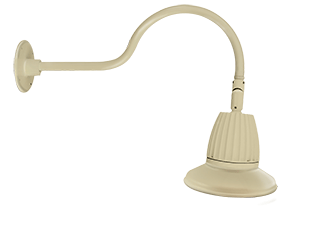

GN1LED13NST11I
