RDLED4S20D-80N-W-W
RDLED4S20D-80N-W-W
- High performance, high efficiency alternative to incandescent lighting
- Integrated ceiling clamps make installation fast and secure for ceiling up to 1 1/4" thick
- Nanostructure lens eliminates "hot spots" providing smooth and efficient light
- Low-profile design allows for installation in ceilings with limited space
- Absolute White™ natural light output
Performance
| Watts | 20W |
| Color Temp | 4000K (Neutral) |
| Lumens | 1,599 lm |
| Efficacy | 78.8 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.17A |
| 208V | 0.11A |
| 240V | 0.10A |
| 277V | 0.09A |
| Input Watts | 20.3W |
Dimensions
Weight: 2.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
Recently Viewed Products

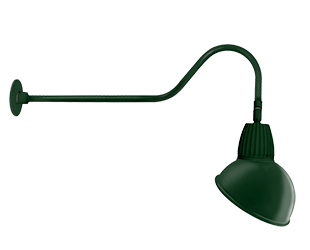

GN2LED13YSADG
Decorative 329 Lumens Gooseneck 13W 3000K 35 Inches Arm Angled Dome Spot Reflector 15 Inches Green
HALVS10L935-MP-S/LC/E2
Architectural 176 Lumens Halvs Forward & Up/Down Light 14W 90Cri 3500K Metallic Platinum Lens Silver Finish Lightcloud Controller Battery Backup
HALVS10L927-TL-SA
Architectural 227 Lumens Halvs Forward & Up/Down Light 14W 90Cri 2700K Toffee Leaves Lens Satin Nickel Finish

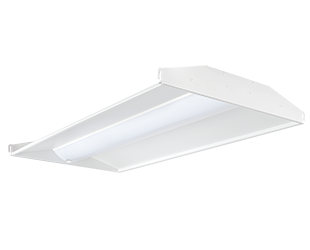

SWISH2X4-49N/D10/MVS
