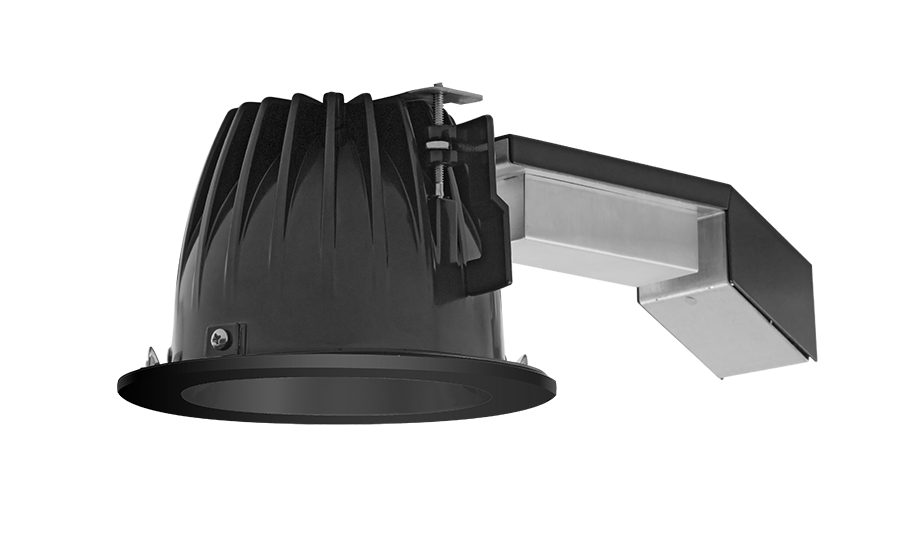

RDLED6R26D-80YY-B-B
RDLED6R26D-80YY-B-B
- High performance, high efficiency alternative to incandescent lighting
- Integrated ceiling clamps make installation fast and secure for ceiling up to 1 1/4" thick
- Nanostructure lens eliminates "hot spots" providing smooth and efficient light
- Low-profile design allows for installation in ceilings with limited space
- Absolute White™ natural light output
Performance
| Watts | 26W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 1,504 lm |
| Efficacy | 51 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.24A |
| 208V | 0.14A |
| 240V | 0.13A |
| 277V | 0.12A |
| Input Watts | 29.5W |
Dimensions
Weight: 2.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Optical
Optics
80° beam spread with specular thermoplasic optics and Nanostructure lens technology for smooth light output and high efficiency
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
Recently Viewed Products
HALVS18L935-CW-K/LC
Architectural 689 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3500K Crushed Polar White Black Finish Lightcloud Controller
IVAT2-45LWM740WU/WS/LC
Area Lights 4080 Lumens Ivat2 Type Ii 38W Wall Mount 70Cri 4000K White 120V-277V 0-10V Dimming 8 Feet Lens Wattstopper Sensor Lightcloud Controller
GN5LED13NSSTLB
Decorative 647 Lumens Gooseneck 13W 4000K Pole 20 Inches High & 19 Inches From Pole Straight Shade Spot Reflector 15 Inches Light Blue
GN5LED13YRACA
Decorative 344 Lumens Gooseneck 13W 3000K Pole 20 Inches High & 19 Inches From Pole Angled Cone Rectangular 15 Inches Bronze
VANLED28FW/PCS2
Canopy Lights 4016 Lumens Vanled 28W 5000K Flat Clear Lens 277V Swivel Photocell White
HALVS18L935-CW-K/LC
Architectural 689 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3500K Crushed Polar White Black Finish Lightcloud Controller
IVAT2-45LWM740WU/WS/LC
Area Lights 4080 Lumens Ivat2 Type Ii 38W Wall Mount 70Cri 4000K White 120V-277V 0-10V Dimming 8 Feet Lens Wattstopper Sensor Lightcloud Controller

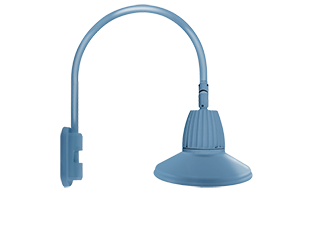

GN5LED13NSSTLB
