RTLED2X4-49YNW/D10
RTLED2X4-49YNW/D10
- Troffer Retrofit can be installed in under 3 minutes by 1 person
- Frosted polycarbonate lens provides a uniform distribution and reduces glare
- 0-10V dimming, standard
- 5-Year, No-Compromise Warranty
Performance
| Watts | 49W |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | 6,611 lm |
| Efficacy | 135.2 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.41A |
| 208V | 0.24A |
| 240V | 0.21A |
| 277V | 0.18A |
| Input Watts | 48.9W |

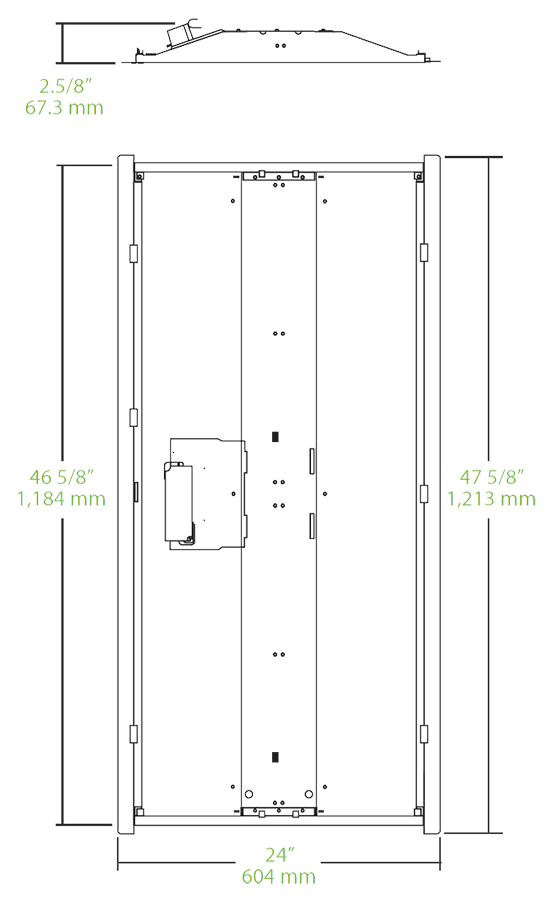

Dimensions
Weight: 19.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.41A, 0.24A, 0.21A, 0.18A
THD
8.2% at 120V, 9.3% at 277V
Power Factor
99.4% at 120V, 95.1% at 277V
Surge Protection
4 kV
Construction
Housing
Steel sheet metal
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Reflector
High-reflectance, powder-coated finish, optimized for uniform light distribution
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed ceiling
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to (3) F32T8 or (3) F28T5
