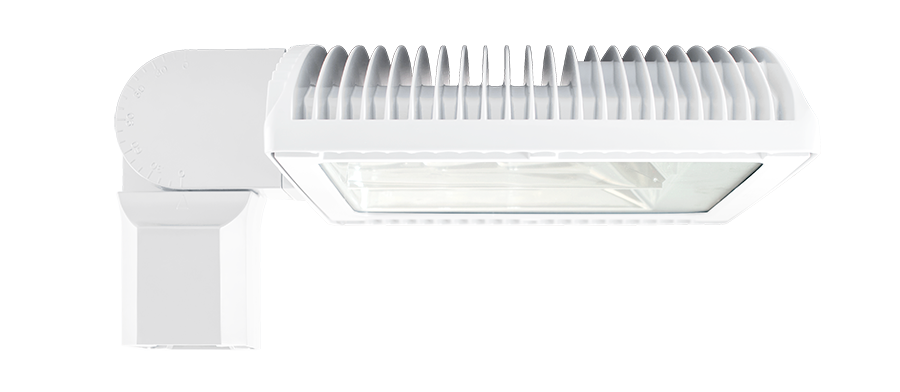

RWLED2T78SFYW/D10

Ideal for entrance roadways, collector roads, and single-sided roads

78W High-Performance LED

Replaces 250W metal halide roadway fixtures

27 year lifespan dramatically reduces maintenance and re-lamping costs

Precision optics deliver maximum downward street side lumens with uniformity and minimal glare

Industry-leading 5G vibration rating per ANSI C136.31

Easy-access electrical compartment makes wiring fast and secure

10-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	78W
Color Temp	3000K (Warm)
Lumens	9,039 lm
Efficacy	115.9 lm/W
Color Accuracy	71 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.66A
208V	0.41A
240V	0.35A
277V	0.30A
Input Watts	78W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 32.0 lbs

Technical Specifications

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

4.9% at 120V, 13.8% at 277V

Power Factor

99.5% at 120V, 93.6% at 277V

Compliance

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PQKJ47S2

UL Listed

Suitable for wet locations as a downlight

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Optical

IES Classification

The Type II distribution is ideal for entrance roadways, collector roads and other long, single-sided and narrow lighting applications. This type of lighting is commonly found on smaller local streets.
