RWLED3T125Y/PCT
RWLED3T125Y/PCT
- Ideal for roadway, general parking and major roads
- 27 year lifespan dramatically reduces maintenance and re-lamping costs
- Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
- Compatible with standard roadway arms
- Universal adaptors for 1", 1 1/4", 1 1/2" and 2" OD pipe included
- Industry-leading 5G vibration rating per ANSI C136.31
- Easy-access electrical compartment makes wiring fast and secure
- 10-Year, No-Compromise Warranty
Performance
| Watts | 125W |
| Color Temp | 3000K (Warm) |
| Lumens | 14,119 lm |
| Efficacy | 106.2 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.12A |
| 208V | 0.70A |
| 240V | 0.61A |
| 277V | 0.52A |
| Input Watts | 132.9W |
Dimensions
Weight: 32.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PQ4GSX6V
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It has greater streetside (transverse) throw, allowing the light to project outward and fill the area.
Construction
Vibration Rating
Industry-leading 5G vibration rating per ANSI C136.31
Electrical
Driver
One Driver, Constant Current, Class 2, 1800mA 100-277V, 50-60Hz, Power Factor 99%
THD
5.1% at 120V, 16.6% at 277V
Power Factor
99.4% at 120V, 92.1% at 277V
Recently Viewed Products

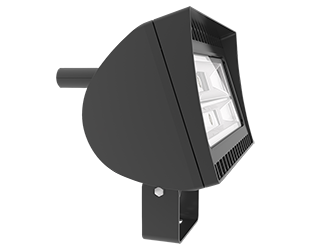

FXLED150T/D10/LC
