RWLED3T150RG/BL
RWLED3T150RG/BL
- Ideal for roadway, general parking and major roads
- 27 year lifespan dramatically reduces maintenance and re-lamping costs
- Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
- Compatible with standard roadway arms
- Universal adaptors for 1", 1 1/4", 1 1/2" and 2" OD pipe included
- Industry-leading 5G vibration rating per ANSI C136.31
- Easy-access electrical compartment makes wiring fast and secure
- 10-Year, No-Compromise Warranty
Performance
| Watts | 150W |
| Color Temp | 5000K (Cool) |
| Lumens | 16,839 lm |
| Efficacy | 108.5 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.31A |
| 208V | 0.80A |
| 240V | 0.69A |
| 277V | 0.60A |
| Input Watts | 155.2W |
Dimensions
Weight: 32.5 lbs
Technical Specifications
Other
Bi-Level Operation
Allows 50% and 100% output modes
Compliance
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PWX8KGGT
UL Listed
Suitable for wet locations as a downlight
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It has greater streetside (transverse) throw, allowing the light to project outward and fill the area.
Construction
Vibration Rating
Industry-leading 5G vibration rating per ANSI C136.31
Electrical
Drivers
Two Drivers Constant Current, Class 2, 2000mA, 100-277V, 50-60Hz, 1.1A, Power Factor 99%
THD
4.9% at 120V, 13.8% at 277V
Power Factor
99.5% at 120V, 93.7% at 277V
Recently Viewed Products
VANLED10YFR/WS
Canopy Lights 1731 Lumens Vanled 10W 3000K 0-10V Dimmable Frosted Lens Wattstopper Sensor Bronze
HALVS10L927-CW-S/E2
Architectural 371 Lumens Halvs Forward & Up/Down Light 14W 90Cri 2700K Crushed Polar White Silver Finish Battery Backup
HALVS18L927-MA-A/BL
Architectural 273 Lumens Halvs Forward & Up/Down Light 25W 90Cri 2700K Mirage Bronze Lens Antique Bronze Finish Bi-Level Control

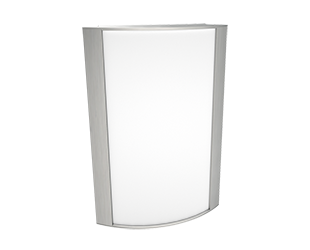

HALV18L930-F-SA/BL
