• Ideal for entrance roadways, collector roads, and single-sided roads
  • 27 year lifespan dramatically reduces maintenance and re-lamping costs
  • Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
  • Industry-leading 5G vibration rating per ANSI C136.31
  • Easy-access electrical compartment makes wiring fast and secure
  • 10-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 50W
Color Temp 5000K (Cool)
Lumens 6,855 lm
Efficacy 124.3 lm/W
Color Accuracy 71 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.46A
208V 0.27A
240V 0.23A
277V 0.20A
Input Watts 55.2W
Dimensions
Link to Dimension Drawing

Weight: 31.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P0000178C
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It has greater streetside (transverse) throw, allowing the light to project outward and fill the area.
Construction
Vibration Rating
Industry-leading 5G vibration rating per ANSI C136.31
Electrical
Driver
Constant Current, Class 2, 1400mA, 100-277V, 50-60Hz, 0.8A, Power Factor 99%
THD
6.1% at 120V, 9.4% at 277V
Power Factor
99.6% at 120V, 96% at 277V

Recently Viewed Products

 This is a link to the product ALEDMATSFB/7PR ALEDMATSFB/7PR
Aled 78-90-150W At 5000K Cool W/Sf 7Pin Recept Black
 This is a link to the product NDLED4RD-80YY-M-W NDLED4RD-80YY-M-W
Recessed Downlights 12 Lumens Ndled4Rd 4 Inch Round Universal Dimming 80 Degree Beam Spread 2700K 80Cri Matte Silver Cone White Trim

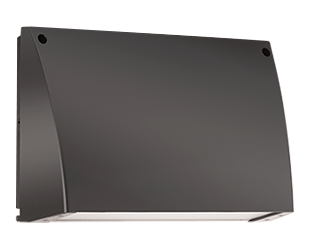

 This is a link to the product SLIM62Y/LC SLIM62Y/LC
Slim Wallpack 62W Warm Led 120 To 277V Bronze Wp3
 This is a link to the product EZPAN1X4-17/D10/LCS/E2 EZPAN1X4-17/D10/LCS/E2
Edgelit Emerg Battery 1X4 17W 5000K 120-277V Dim Led White
 This is a link to the product ALED2T50W/WS2 ALED2T50W/WS2
Arealights 7070 Lumens Aled Type Ii 8In Pole Arm 5K 50W 120V-277V Multi-Level Sensor With 20 Feet Lens White

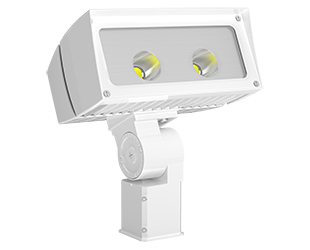

 This is a link to the product FFLED26SFYB55W/PCU FFLED26SFYB55W/PCU
