RWLED3T78SF/D10
RWLED3T78SF/D10
- Ideal for roadway, general parking and major roads
- 78W High-Performance LED
- Replaces 250W metal halide roadway fixtures
- 27 year lifespan dramatically reduces maintenance and re-lamping costs
- Precision optics deliver maximum downward street side lumens with uniformity and minimal glare
- Industry-leading 5G vibration rating per ANSI C136.31
- Easy-access electrical compartment makes wiring fast and secure
- 10-Year, No-Compromise Warranty
Performance
| Watts | 78W |
| Color Temp | 5100K (Cool) |
| Lumens | 9,263 lm |
| Efficacy | 120.7 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.66A |
| 208V | 0.41A |
| 240V | 0.35A |
| 277V | 0.30A |
| Input Watts | 76.8W |

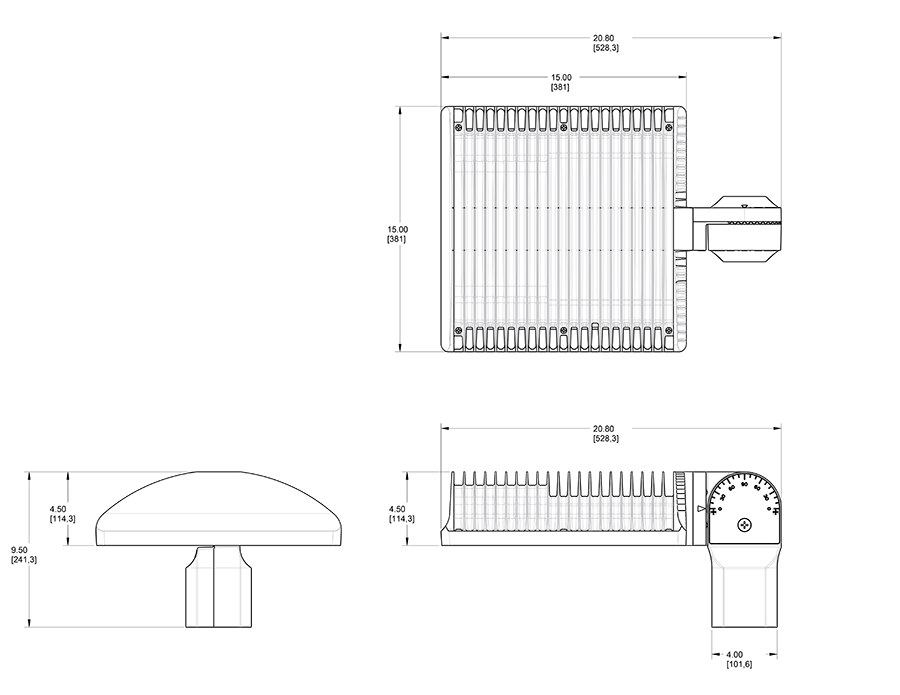

Dimensions
Weight: 31.0 lbs
Technical Specifications
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.7% at 120V, 13.9% at 277V
Power Factor
99.5% at 120V, 93.7% at 277V
Compliance
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. DLC Product Code: PYHUUU6C
UL Listed
Suitable for wet locations as a downlight
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It has greater streetside (transverse) throw, allowing the light to project outward and fill the area.
