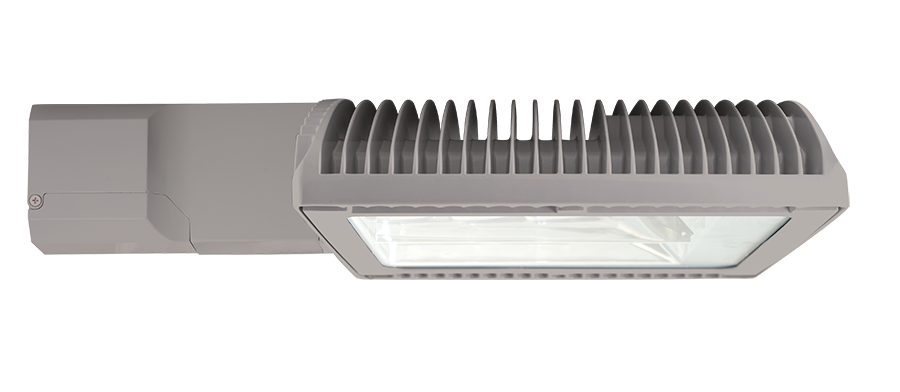

RWLED4T125YRG/480/PCT4

Spec Sheet IES File Instructions Spec Sheet EZ Layout

Ideal for parking areas and for intersections

27 year lifespan dramatically reduces maintenance and re-lamping costs

Precision optics deliver maximum downward street side lumens with uniformity and minimal glare

Compatible with standard roadway arms

Universal adaptors for 1", 1 1/4", 1 1/2" and 2" OD pipe included

Industry-leading 5G vibration rating per ANSI C136.31

Easy-access electrical compartment makes wiring fast and secure

10-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	125W
Color Temp	3000K (Warm)
Lumens	15,591 lm
Efficacy	115.9 lm/W
Color Accuracy	71 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V
208V
240V
277V
Input Watts	134.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 33.5 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations as a downlight

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: PPTW2QWS

IP Rating

Ingress protection rating of IP66 for dust and water

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Optical

IES Classification

The Type IV distribution (also known as a Forward Throw) is especially suited for illuminating the perimeter of parking areas and for intersections. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.

Construction

Effective Projected Area

EPA = 0.75

Electrical

Drivers

Two Drivers, Constant Current, Class 2, 1750mA, 347-480V, 50/60Hz, 0.30A, Power Factor 94.2%

THD

13.6% at 480V

Power Factor

94.1% at 480V
