SHARK4-50W/D10/6CP

Spec Sheet IES File Instructions Spec Sheet EZ Layout

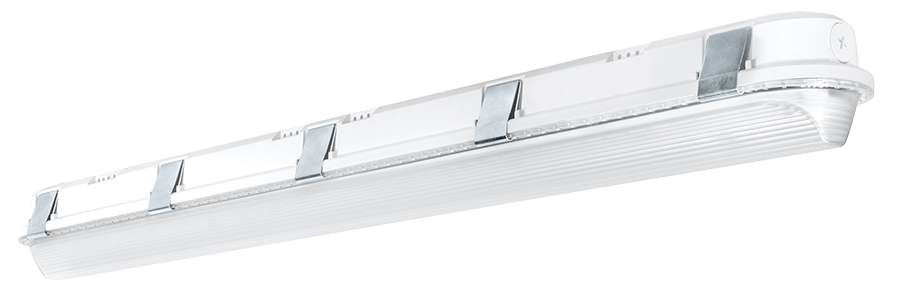

SHARK4-50W/D10/6CP

Impact-resistant linear washdown

Ideal for tunnels and stairwells

Mounting options: Chain, junction box, angled surface mount or vandal-resistant surface mount

IP66 Rating protects against dust & water ingress

5-Year, No-Compromise Warranty

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	50W
Color Temp
Lumens	5,161 lm
Efficacy	107.5 lm/W
Color Accuracy
L70 Lifespan

Type	Constant Current
120V	0.40A
208V	0.24A
240V	0.21A
277V	0.18A
Input Watts	48W

EZ-Layout

Create Custom Lighting Layout

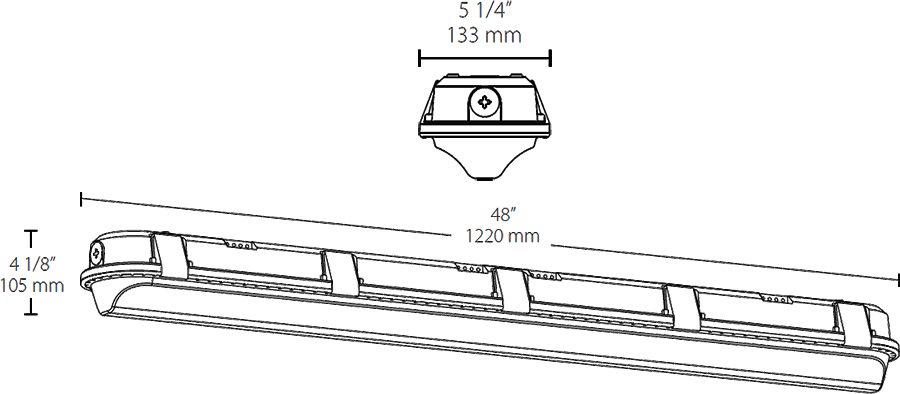

Dimensions

Weight: 13.3 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

NSF

NSF Certified by Public Health and Safety

IP Rating

Ingress protection rating of IP66 for dust and water

NEMA Rating

NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.

Construction

Reflector/Tray

Aluminum

Housing

5VA impact-resistant polycarbonate. 1/2" openings for conduit and bushing/cord entry. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.

Lens

Diffuse polycarbonate lens for low glare and maximum protection

Installation

Mounting

Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Electrical

Driver

Class 2 Constant Current, 4kV, 100-277VAC, 50-60Hz

THD
