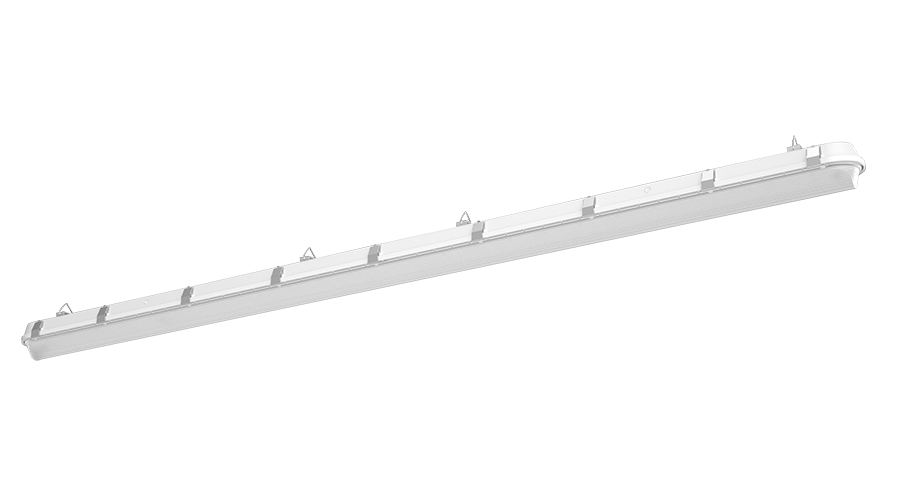

SHARK8-100W/D10
SHARK8-100W/D10
- NSF certified for use in food-preparation facilities
- American Bureau of Shipping (ABS) approved
- Ideal for tunnels and stairwells
- Mounting options:
- Chain, junction box, angled surface mount, ceiling mount or vandal-resistant surface mount
- IP66 AND NEMA 4X ratings protect against dust, water ingress & corrosion
- 5-Year, No-Compromise Warranty
- 100,000-Hour LED lifespan
Performance
| Watts | 100W |
| Color Temp | 5000K (Cool) |
| Lumens | 13,181 lm |
| Efficacy | 150.3 lm/W |
| Color Accuracy | 86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.75A |
| 208V | 0.48A |
| 240V | 0.42A |
| 277V | 0.34A |
| Input Watts | 87.7W |

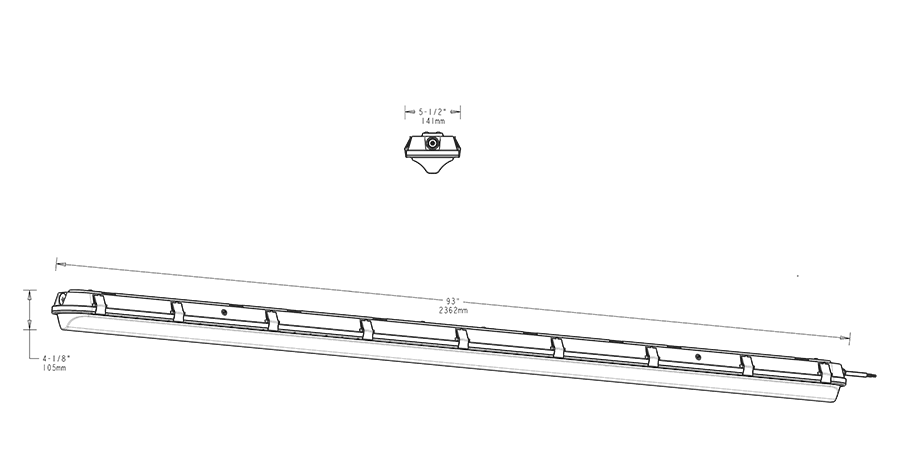

Dimensions
Weight: 25.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
UL 94
5VA flame classification
NSF
NSF Certified by Public Health and Safety
IP Rating
Ingress protection rating of IP66 for dust and water
NEMA Rating
NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PHJSHEAH (Stairwell and Passageway Luminaires)
DLC Product Code: P1DDNR4O (High-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: PE2JCFJO (Direct Linear Ambient Luminaires)
DLC Product Code: PHJSHEAH (Stairwell and Passageway Luminaires)
DLC Product Code: P1DDNR4O (High-Bay Luminaires for Commercial and Industrial Buildings)
DLC Product Code: PE2JCFJO (Direct Linear Ambient Luminaires)
Construction
Length
8 ft
Reflector
Specular polycarbonate
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.75A, 208V: 0.48A, 240V: 0.42A, 277V: 0.34A
THD
1.49% at 120V, 2.26% at 277V
Power Factor
99.8% at 120V, 95.2% at 277V
