SHARK8/MVS
100W 3500/4000/5000K
- Impact-resistant linear washdown
- Ideal for tunnels and stairwells
- Mounting options: Chain, junction box, angled surface mount or vandal-resistant surface mount
- IP66 Rating protects against dust & water ingress
- 5-Year, No-Compromise Warranty
- 100,000-Hour LED lifespan
Performance
| Watts | 100/80/60W |
| Color Temp | 3500/4000/5000K |
| Lumens | 8,585-14,201 lm |
| Efficacy | 134.9-160.5 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.82A/0.66A/0.48A |
| 208V | 0.48A/0.40A/0.30A |
| 240V | 0.42A/0.35A/0.25A |
| 277V | 0.36A/0.30A/0.23A |
| Input Watts | 56.3-98.6W |
Dimensions
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
UL 746C
F1 weatherability rating for UV resistance, water exposure, and extreme temperature conditions.
NSF
NSF Certified by Public Health and Safety
NEMA Rating
NEMA 4X rating indicates an enclosure protects against windblown dust and rain, splashing and hose-directed water, and offers additional corrosion resistance.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.26% at 120V, 11.62% 277V
Power Factor
99.9% at 120V, 96.1% at 277V
Surge Protection
2.5 kV
Construction
Housing
IK09 impact-resistant polycarbonate with 5VA flame rating*
1/2" openings for conduit and bushing/cord entry
*Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
1/2" openings for conduit and bushing/cord entry
*Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
Lens
Diffuse polycarbonate lens for low glare and maximum protection
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Installation
Mounting
Quick-mount, surface, stainless steel spring clips supplied. 4 additional mounting accessory kits available.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Sensor Settings
Operating Voltage
12V DC
Operating Current
≤25mA
Detection Area
25%/50%/75%/100%
Maximum Mounting Height
20 ft
Customizable Detection Area
10, 50, 75 or 100%
Hold Time
5s, 30s, 1min, 3min, 5min, 10min, 20min, 30min
Cut-Off Period
0s/10s/30s/1min/5min/10min/30min/+∞
Cut-Off Dimming Level
10,20,30,50%
Cut-Off Power
≤0.5W
Daylight Threshold
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Sensor Principle
High Frequency
Microwave Frequency
5.8GHz +/- 75MHz
Microwave Power
<0.3mW
Max Detection Range
46 ft
Operating Temperature
-4°F to + 140°F (-20°C to +60°C)
Remote Control
Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
HALVS18L935-FG1-SA/BL
Architectural 1454 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3500K Frosted Lens With Grill Style 1 Satin Nickel Finish Bi-Level Control
IVGT5-30L730ZU/LC
Garage Lights 3789 Lumens Ivgt5 Type V 28W 70Cri 3000K Bronze 120V-277V 0-10V Dimming Lightcloud Controller
GN2LED13NRST11I
Decorative 647 Lumens Gooseneck 13W 4000K 35 Inches Arm Straight Shade Rectangular 11 Inches Ivory

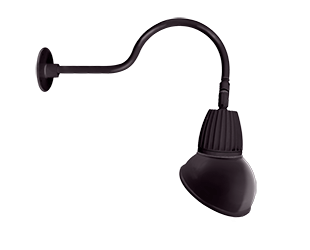

GN1LED26NAD11A
