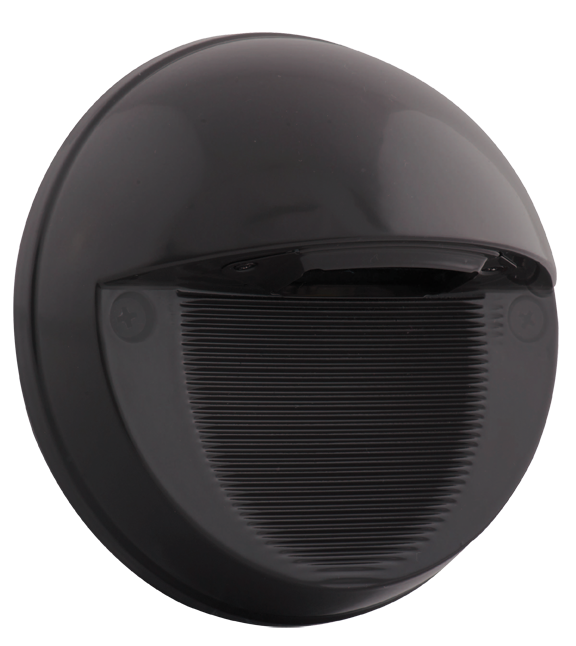

SLEDR5NDC
Performance
| Watts | 5W |
| Color Temp | 4000K (Neutral) |
| Lumens | 159 lm |
| Efficacy | 30.6 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | DC to DC |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5.2W |
Dimensions
Weight: 1.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft. of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
THD
11.6% at 120V, 21% at 277V
Electrical Input Specifications
MaxW = 5.1W, Input Volts = 10-30V DC, Input Amps = 0.51 - 0.17A.
Surge Protection
1000 Volts
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 13W CFL or 60W Incandescent
Construction
Finish
Formulated for high durability and long-lasting color
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Green Technology
Mercury and UV free. RoHS-compliant components.
Housing
Precision die-cast aluminum housing and mounting plate (junction box not included)
Gaskets
High-temperature silicone
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Lumen Maintenance
The LED will deliver 70% of its initial lumens at 100,000 hours of operation
Color Temperature
4000K
Other
Patents
The design of the SLED Lights are protected by U.S. Pat. D612,974, CA Pat. 133100, and China Pat. ZL201030129138.4.
Equipment
Solar panel, battery and controls by others
