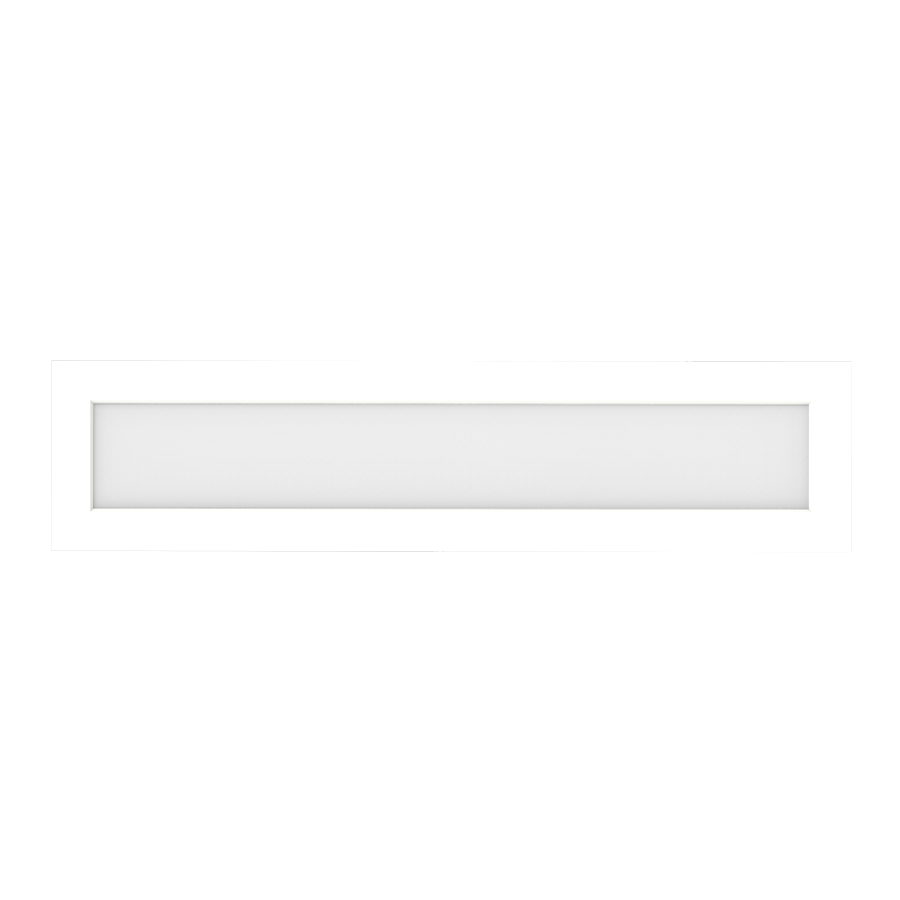

SML2
- Select from 5 field-adjustable color temperatures 2700K, 3000K, 3500K, 4000K, or 5000K
- Suitable for indoor applications in dry and damp environments
- Dimmable, see Dimmer Compatibility List
- Meets California Title 24 requirements
- 50,000 life hours
- 5-Year, no compromise warranty
Performance
| Watts | 25W |
| Color Temp | |
| Lumens | 1,800-1,960 lm |
| Efficacy | #VALUE! lm/W |
| Color Accuracy | Field Adjustable 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.23A |
| 208V | 0.15A |
| 240V | 0.13A |
| 277V | 0.12A |
| Input Watts | 25W |
Dimensions
Weight: 2.4 lbs
Technical Specifications
Performance
Description
This surface linear downlight offers a sleek, modern look for any application. Offered in various unique form factors, 5 color temperatures to choose from, universal voltage (120-277V) and dimming options available.
Product Type
Surface & Flush Mounts
Input Wattage
25W
Efficacy
5000K: 78lm/W
4000K: 78lm/W
3500K: 76lm/W
3000K: 74lm/W
2700K: 72lm/W
4000K: 78lm/W
3500K: 76lm/W
3000K: 74lm/W
2700K: 72lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Dimming
Yes, See Dimmer Compatibility List
Wattage Equivalency
Equivalent to 40W CFL
Compliance
UL Listed
Suitable for damp locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
THD
≤30%
Power Factor
≥0.9
Operating Frequency
50/60Hz
Construction
Material
Metal
Trim Style
Smooth Trim
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Installation
Mounting
Surface mount
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products

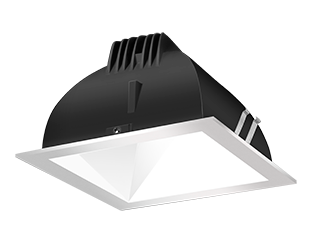

NDLED6SD-50YN-W-S
