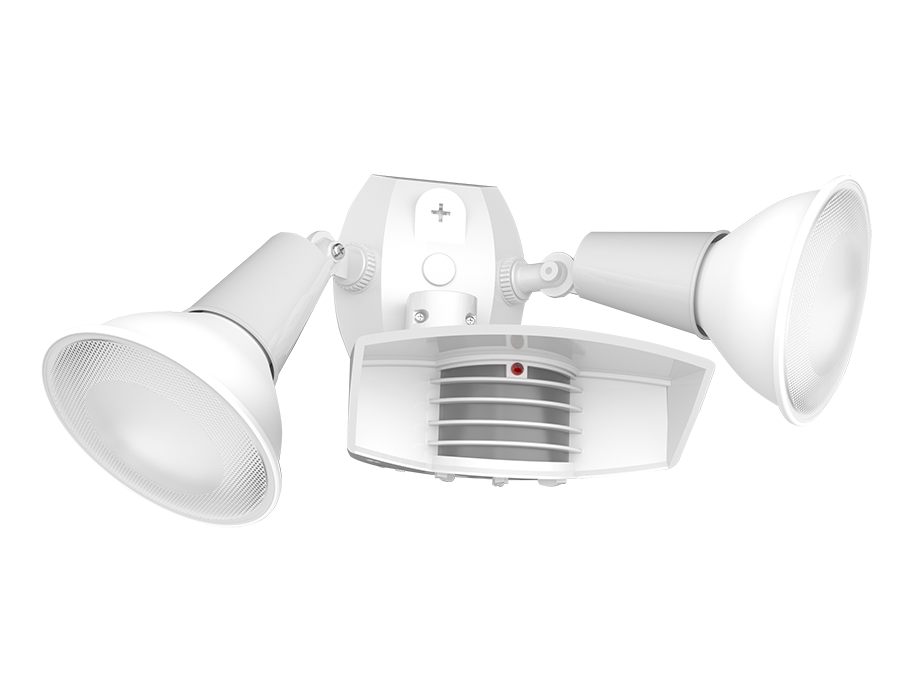

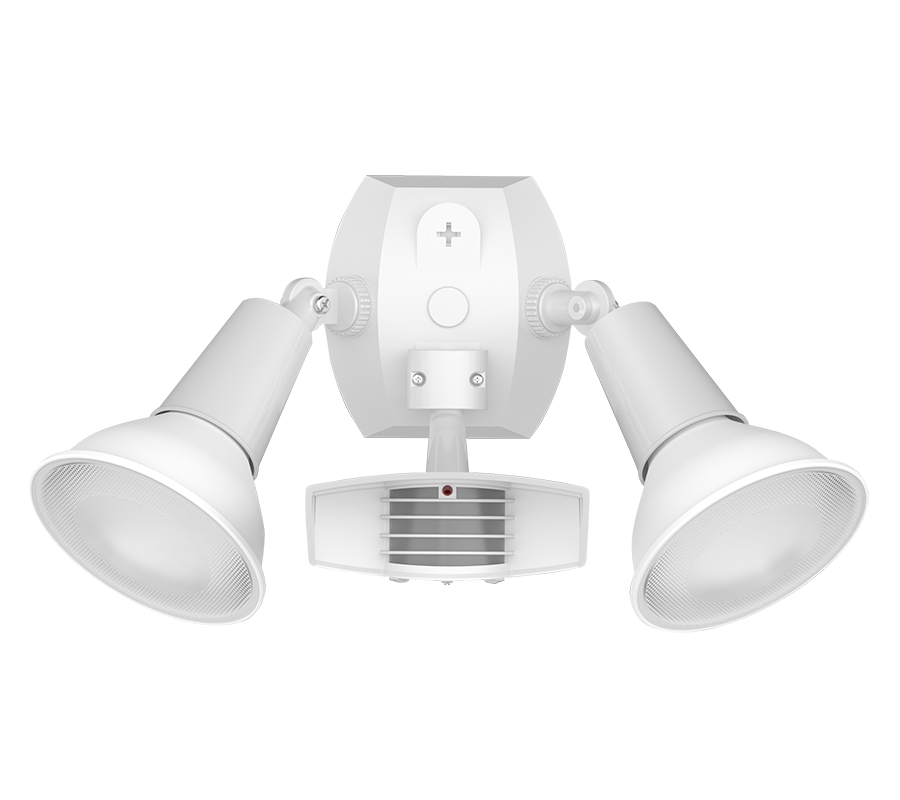

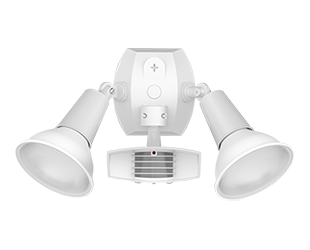

STL110RW/L
- Two CCT-Selectable PAR38s
- 110° view sensor
- EZ Plate Universal Cover fits all outdoor boxes
- Protected Manual Override
Performance
| Watts | 38W |
| Color Temp | 3000/4000/5000K |
| Lumens | 3,600 lm |
| Efficacy | 95 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 15,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 38W |
Dimensions
Weight: 2.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Voltage
120V AC 60Hz
Power Consumption
1W
Surge Protection
Withstands up to 6000 volts
Switching Capacity
120W Electronic Ballast (LED) @ 120 Volts
Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Stays on for 6 hours. No extra wiring needed.
Construction
Temperature Compensation
Sensitivity adjusts automatically for consistent detection in hot and cold ambient temperatures
Horizontal Lock, No-tool Joints
Keeps sensing pattern level for fast, error-free installation
Floodlights
Precision die cast aluminum. 1/2" NPS threaded arm with serrated locking swivel fits all standard mounting boxes and covers.
Lamps Supplied
Two (2) Edison base PAR38 lamps with three field-selectable color temperatures (3000/4000/5000K).
LED Characteristics
LED Detection Indicator
Shows when sensor is detecting in daytime and glows red at night for "on-guard" deterrence
Sensor Settings
Advanced Detection Logic
Minimizes false triggers
RF Immunity
Circuits fully shielded for maximum radio frequency immunity
Auto Test Logic
5 minutes of test time when powered. Resets to auto mode without adjustment.
Time Adjustment
5 seconds to 12 minutes
Photoelectric Control
Deactivates lights during daylight.
Detection
110° view
Wide Sensitivity Control
Adjustable from 100% to 30%
Adjustable Detection Zone
Customize the protection pattern with included snap-on blinders (if required)
Other
10-Year Limited Warranty
The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
