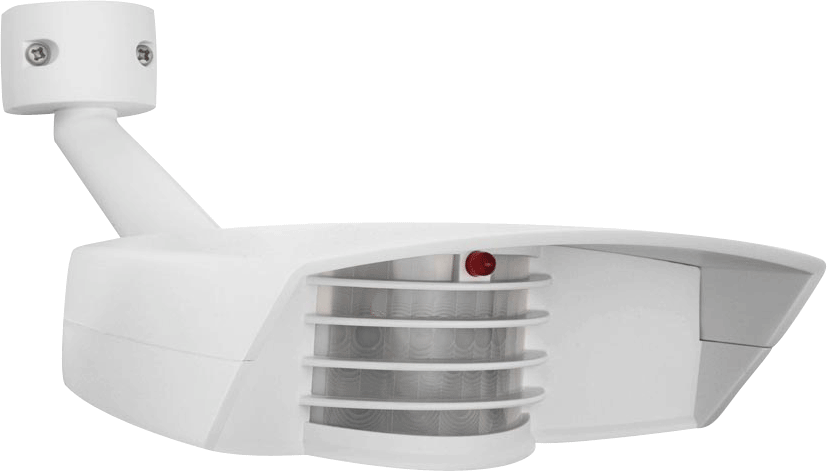

STL110W-LED
STL110W-LED large main
  • Compatible with LED lamps
  • Temperature compensation
  • Radio frequency immunity
  • 6000 volt surge protection
  • LED detection & "on guard" indicator
  • Color matched vandal resistant lens and grill
  • Protected manual override with auto reset
  • Can be wired in parallel
 View Technical Specs
View Price & Availability
Dimensions
Link to Dimension Drawing

Weight: 0.9 lbs

Technical Specifications
Compliance
UL Listed
Raintight Photoelectric Switch
Electrical
Switching Capacity
8 amps
Voltage
120V
300W LED
Surge Protection
I.E.C specs
Sensor Settings
Detection Pattern
50' x 100°
Time Adjustment
5 seconds to 12 minutes
Power Consumption
1 watt
Other
Warranty
10-year sensor warranty
