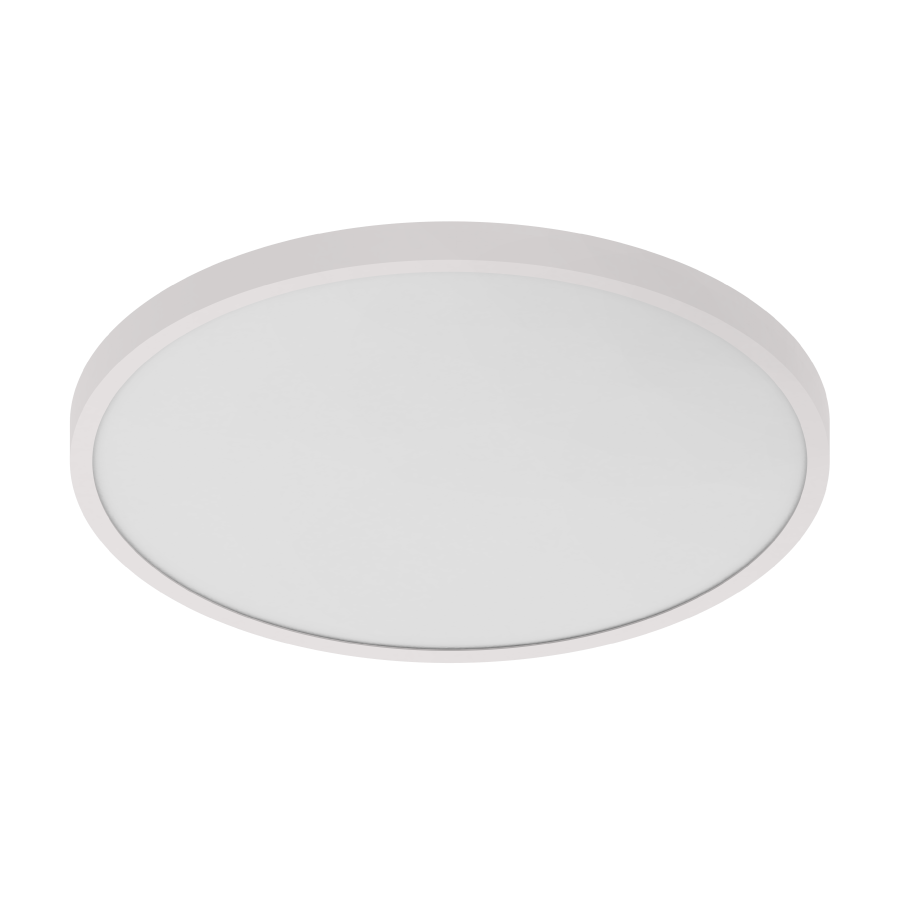

SUMO-R-24/D10
SUMO-R-24/D10
- Select from 5 field-adjustable color temperatures 5000K, 4000K, 3500K, 3000K, or 2700K
- Suitable for indoor/outdoor applications in dry, damp, or wet environments
- Dimmable on TRIAC/ELV systems, see dimmer compatibility list.
- Meets California Title 24 requirements
- 5-Year, No-Compromise Warranty
- 120V
Performance
| Watts | 35W |
| Color Temp | |
| Lumens | 2,600-2,850 lm |
| Efficacy | 74-81 lm/W |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.32A |
| 208V | 0.18A |
| 240V | 0.15A |
| 277V | 0.14A |
| Input Watts | 35W |
Dimensions
Weight: 6.9 lbs
Technical Specifications
Performance
Product Type
Edge-lit Surface Mount
Input Wattage
35W
Lumens
5000K: 2,850lm
4000K: 2,810lm
3500K: 2,800lm
3000K: 2,650lm
2700K: 2,600lm
4000K: 2,810lm
3500K: 2,800lm
3000K: 2,650lm
2700K: 2,600lm
Efficacy
5000K: 81lm/W
4000K: 80lm/W
3500K: 80lm/W
3000K: 76lm/W
2700K: 74lm/W
4000K: 80lm/W
3500K: 80lm/W
3000K: 76lm/W
2700K: 74lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
Equivalent to 200W Incandescent
Electrical
Driver
Constant Current, Class 2, 50/60 Hz 120-277V, 120V: 0.32A, 208V: 0.18A, 240V: 0.15A, 277V: 0.14A
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, 0-10V and TRIAC/ELV dims down to 10%.
See Dimmer Compatibility List.
See Dimmer Compatibility List.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Surge Protection
2.5 kV
LED Characteristics
Color Temperature
Field Adjustable: 2700K,3000K,3500K,4000K,5000K
Color Accuracy (CRI)
>90 CRI
R9 Value
High color performance with R9 greater than or equal to 50
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface Mount
Construction
Size
24"
Shape
Round
Finish
Formulated for high durability and long-lasting color
Housing Material
Metal
Trim Style
Smooth
Lens
Frosted lens constructed from polycarbonate material diffuses light evenly and smoothly
Compliance
Listings
UL Listed
Environment
Suitable for use in indoor and outdoor application in dry, damp, and wet environments
UV Protection
Fade-resistant powder spray polyester
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
DRI-25-EMGR-DC
25W Emergency Driver
DRI-21-EMGR-DC-D10
20W Emergency Driver
25W Emergency Driver
DRI-21-EMGR-DC-D10
20W Emergency Driver
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
