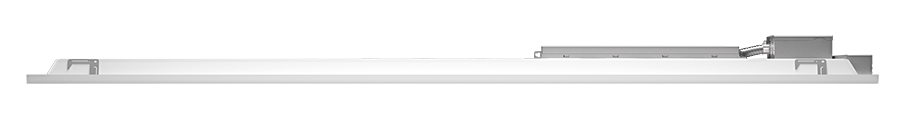

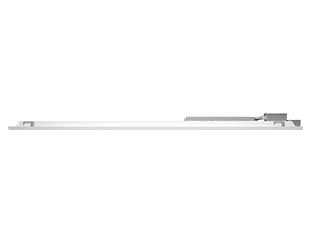

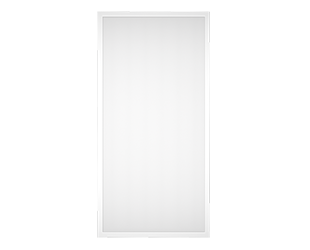

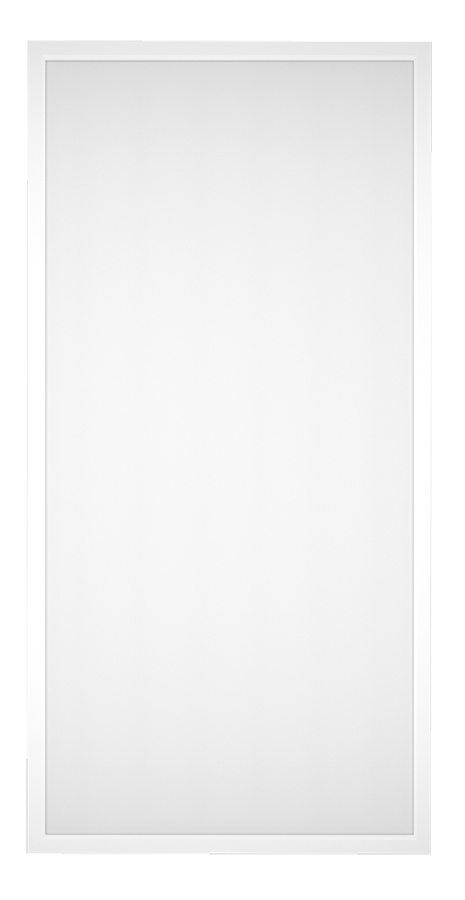

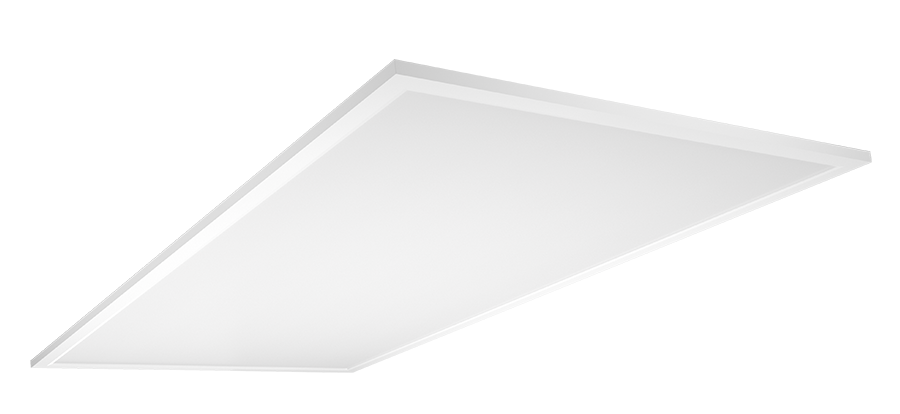

T34FAHE-2X4
30W Field Adjustable 5000/4000/3500K
- 0-10V dimming
- 50,000-Hour LED lifespan
- 5-Year, limited warranty
- 2 per case, must order in case quantity increments
Performance
| Watts | 30/23/17W |
| Color Temp | Field Adjustable 5000/4000/3500K |
| Lumens | 2,329-3,922 lm |
| Efficacy | 125.7-136.8 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.24A/0.19A/0.14A |
| 208V | 0.14A/0.11A/0.08A |
| 240V | 0.12A/0.09A/0.07A |
| 277V | 0.11A/0.09A/0.07A |
| Input Watts | 17.6-30.3W |
Dimensions
Weight: 9.6 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
30W/23W/17W (factory default 30W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
30W/23W/17W (factory default 30W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
CCEA Compliant
Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
IC Rated
Suitable for direct contact with insulation
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-8HQXDV
DLC Product Code: S-8HQXDV
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
30W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.24A, 208V: 0.14A, 240V: 0.12A, 277V: 0.11A
23W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.19A, 208V: 0.11A, 240V: 0.09A, 277V: 0.09A
17W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.14A, 208V: 0.08A, 240V: 0.07A, 277V: 0.07A
23W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.19A, 208V: 0.11A, 240V: 0.09A, 277V: 0.09A
17W: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.14A, 208V: 0.08A, 240V: 0.07A, 277V: 0.07A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
THD
15% at 120V, 15% at 277V
Power Factor
96.2% at 120V, 92% at 277V
Surge Protection
L-N: 2 kV
L/N-GND: 4 kV
L/N-GND: 4 kV
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Frosted polystyrene
Housing
Aluminum frame with iron backplate
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
