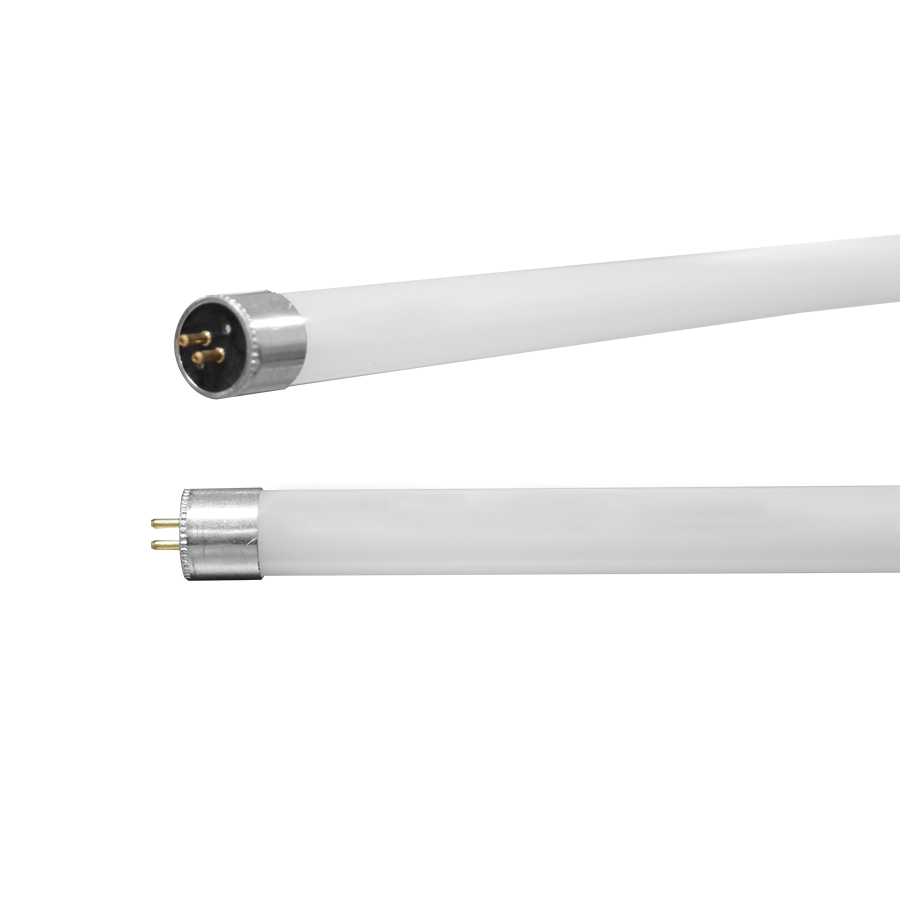

T5HO-12-24G-850-SE-BYP
T5HO-12-24G-850-SE-BYP
- Replacement for conventional fluorescent tubes
- Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Single ended wiring method
- 50,000 hour Lifespan
- Rated for use in enclosed and open fixtures in dry or damp locations
- Diffused frosted lens will maintain the same light quality over time
- Instant on full brightness
- Environmentally friendly, no mercury used
- NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)
- UL Classified
Performance
| Watts | 12W |
| Color Temp | 5000K |
| Lumens | 1,600 lm |
| Efficacy | 133 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | <20% |
Dimensions
Weight: 0.2 lbs
Technical Specifications
Performance
Product Type
Linear
Input Wattage
12W
Lumens
1,600lm
Efficacy
133lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
F24T5/HO
LED Characteristics
Color Accuracy (CRI)
80
Color Temperature
5000K
Beam Angle
180°
Construction
Nominal Length
2 ft
Shape
T8
Enclosure Material
Glass
Housing Finish
Aluminum
Lens Finish
Frosted
Installation
Base Type
G5
Installation Method
UL Type B, Ballast Bypass - Single Ended Wire
Electrical
THD
≤20%
Power Factor
>0.9
Operating Temperature
-20°C to 45°C
Input Voltage
120-277V
Operating Frequency
50/60Hz
Dimming
No
Other
Technology EQ
Fluorescent
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Compliance
Listings
UL Classified, UL Recognized
Environment
Damp / Enclosed
NSF Listing
NSF/ANSI Standard 2 - Food Equipment (non-contact), Splash Zone, and Non-Food Zone. (Not for Direct Food Zone without additional fixture considerations)
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
