T8-10.5-48G-840-DIR

Spec Sheet Dimmer Compatibility List Ballast Compatibility List LM79 Instructions FCC Caution Spec Sheet

T8-10.5-48G-840-DIR

Direct Replacement for Fluorescent Lamps: F32T8/32W, F32T8/30W, F32T8/28W, F32T8/25W

Easy to install plug and play that requires no rewiring, no tools, no instructions

50,000 hour Lifespan

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Compatible with most instant start electronic T8 ballasts, see Ballast Compatibility List

Approximately 40% more efficient than fluorescent T8 lamps

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Dimmable, see Dimmer Compatibility List

View Technical Specs

View Price & Availability

Performance

Watts	10W
Color Temp	4000K (Cool White)
Lumens	1,800 lm
Efficacy	171.4 lm/W
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	Ballast Dependent
Power Factor	Ballast Dependent
Flicker	Ballast Dependent
THDi	N/A

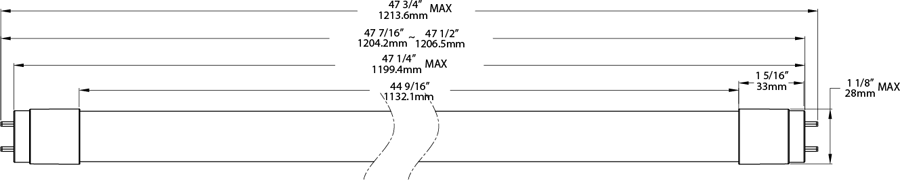

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

Linear

Input Wattage

10.5W

Lumens

1,800lm

Efficacy

171lm/W

L70 Lifespan

50,000 Hours

Wattage Equivalency

32W Fluorescent

Construction

Material

Glass

Shape

Nominal Length

4 ft

Finish

Frosted

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

4000K Cool White

Color Accuracy (CRI)

80 CRI

Beam Angle

180°

Installation

Base Type

G13

Installation Type

Type A, Plug and Play

Electrical

THD

<25%

Power Factor

Ballast Dependent

Operating Temperature

-13°:F to 113°F(-25°C to 45°C)

Dimming

Yes with 0-10V dimmer + ballast. See Dimmer Compatibility List.

Input Voltage

Ballast Dependent

Operating Frequency

Ballast Dependent

Input Current @ 120V

Ballast Dependent

Input Current @ 277V

Ballast Dependent

Flicker

Ballast Dependent

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

Certification Model Number

T10002

California Energy Commission (CEC) Status

Lawful for Sales in California

Application

Suitable for damp locations and totally enclosed fixtures.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
