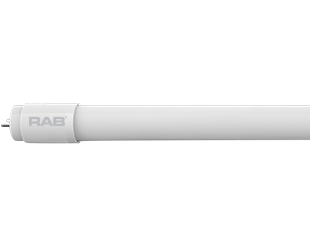

T8-17.5-48G-835-SD-BYP

Spec Sheet IES File LM79 Instructions FCC Caution Family Spec Sheet Spec Sheet EZ Layout

Replacement for conventional fluorescent T8 and T12 linear tubes

Integral Driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

Single ended and double ended wiring method

Works with non-shunted sockets and shunted sockets.

Approximately 50% more energy efficient when compared to Fluorescent T8 lamps

50,000 hour Lifespan.

Rated for use in enclosed and open fixtures in dry or damp locations

Diffused frosted lens will maintain the same light quality over time

Instant on full brightness

Environmentally friendly, no mercury used

NSF Listed: NSF/ANSI Standard 2 - Food Equipment - Splash Zone (Not for Direct Food Zone without additional fixture considerations)

Internal thermal fuse for added safety

View Technical Specs

View Price & Availability

Performance

Watts	17W
Color Temp	3500K
Lumens	2,400 lm
Efficacy	137
Color Accuracy	83 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	>0.9
Flicker	50%-70%
THDi	25%

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.5 lbs

Technical Specifications

Performance

Product Type

Linear Tube

Description

Single or Double Ended wiring method makes these Type B tubes super flexible for in field installation. Available in 4 ft, 3 ft and 2 ft.

Wattage Equivalency

32W Fluorescent

Input Wattage

17.5W

Lumens

2,400lm

Efficacy

137.9lm/W

Lifespan

50,000-Hour LED lifespan based on IESlm-70 results

Electrical

THD

≤25%

Power Factor

>0.9

Dimmable

Yes, when using Lutron DVELV-300P

Input Voltage

120-277V

Operating Frequency

50/60Hz

Input Current @ 120V (mA)

165mA

Input Current @ 208V (mA)

97mA

Input Current @ 240V (mA)

85mA

Input Current @ 277V (mA)

75mA

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

LED Characteristics

Beam Angle

230°

Color Temperature

3500K

Color Accuracy (CRI)

83 CRI

R9 Value

High color performance with R9 greater than 0

Color Consistency

<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Base Type

G13

Construction

Length

4 ft

Shape

Endcap Material

Plastic

Enclosure Material

Glass

Lens Finish

Frosted

Compliance

Listings

UL Recognized, UL Classified

Environment

Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.

Fixture Rating

Suitable for use in enclosed fixtures

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

DLC ID

PG7NBLAV

Certification Model Number

T10314(T8-17.5-48G-835-SD-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

NSF Listed

Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

DRI-5-EMGR-T8
5W EM driver for T8 Bypass DE or SD models

DRI-10-EMGR-TYPE B
10W EM driver for T8 Bypass DE or SD models

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
