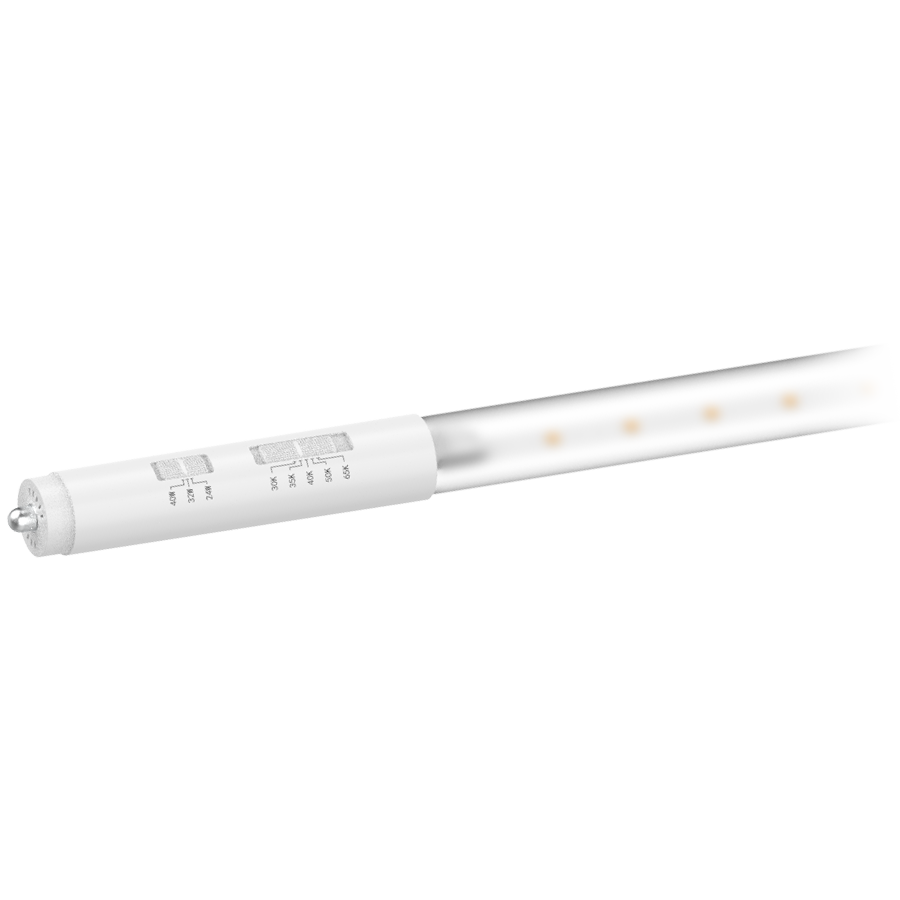

T8-96G-DE-BYP-C
T8-96G-DE-BYP-C
- Field-adjustable power and color temperature
- Replacement for conventional fluorescent T8 and T12 linear tubes
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Interchangeable base type R17D or FA8
- Double-ended wiring method
Performance
| Watts | 40/32/24 W |
| Color Temp | 3000/3500/4000/5000/6500K |
| Lumens | 3,399-5,665 lm |
| Efficacy | 135-142 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | 120-277V |
| Power Factor | >0.9 |
| Flicker | N/A |
| THDi | <25% |
Dimensions
Weight: 0.4 lbs
Technical Specifications
Performance
Product Type
Linear Tube
Description
Field-adjustable power and color temperature double ended type B tubes with interchangable base type.
Wattage Equivalency
59/86/96W Fluorescent
Input Wattage
24/32/40W
Lumens
3600/4550/5700lm
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Other
Efficacy
142/134/135lm/W
Compatible Accessories
Compatible with super EM
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
THD
≤25%
Power Factor
>0.9
Dimmable
Yes, but not recommended for dimming applications.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
206/278/356mA
Input Current @ 208V (mA)
124/167/212mA
Input Current @ 240V (mA)
107/146/186mA
Input Current @ 277V (mA)
96/130/164mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
120°
Color Temperature
Field adjustable via dip switch 3000/3500/4000/5000/6500K
Color Accuracy (CRI)
Produces 80 CRI, ideal for general lighting applications
R9 Value
High color performance with R9 greater than 0
Color Consistency
<5-(3000K & 6500K), <7- (3500K/4000K/5000K) step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Base Type
Interchangable base: FA8 or R17D
Construction
Length
8 ft
Shape
T8L
Finish
White
Endcap Material
Plastic
Enclosure Material
Glass
Lens Finish
Clear
Compliance
Listings
UL Recognized, UL Classified
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Certification Model Number
T10300(T8-96G-DE-BYP-C)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
Rohs
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
